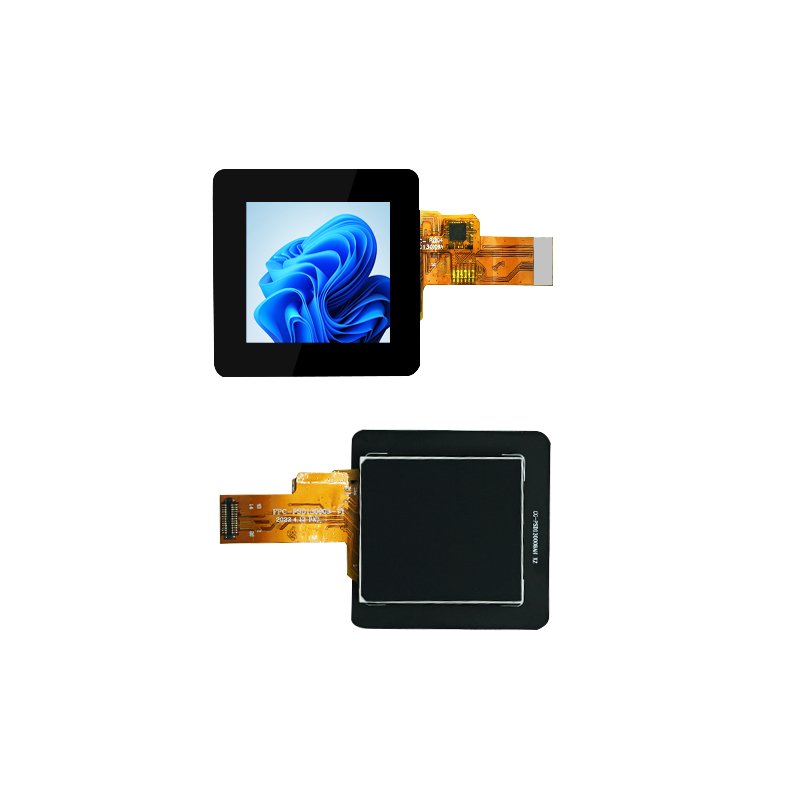

1.3 inch Square TFT LCD Display - Capacitive Touch Screen, MIPI Interface

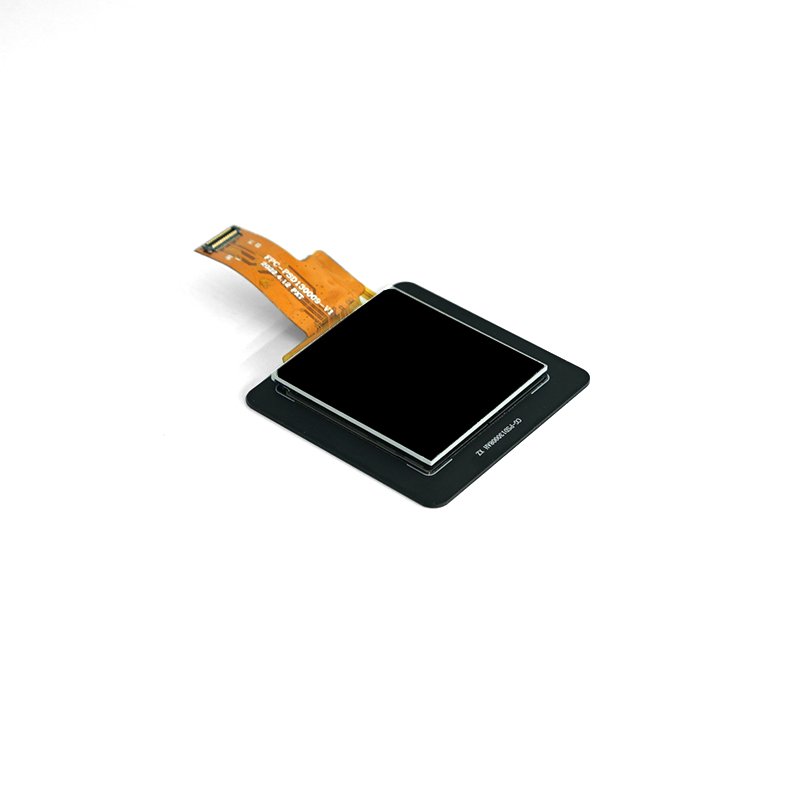

1.3 inch Square TFT LCD Display - Capacitive Touch Screen, MIPI Interface - Image 2

1.3 inch Square TFT LCD Display - Capacitive Touch Screen, MIPI Interface - Image 3

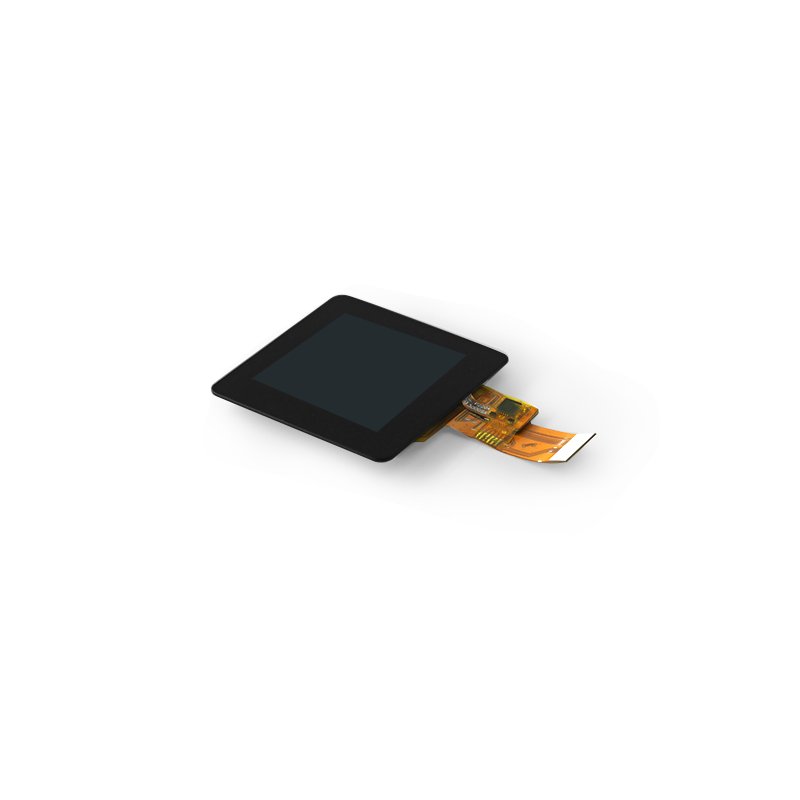

1.3 inch Square TFT LCD Display - Capacitive Touch Screen, MIPI Interface - Image 4

1.3 inch Square TFT LCD Display – Capacitive Touch Screen, MIPI Interface

Size: 1.3 inch TFT Touch Panel
Resolution: 240*240
Interface: MIPI
Luminance: 300nit
IC Driver: ST7785M
LCD Type: AM TFT ,TRANSMISSIVE, NEGATIVE

SKU: RV013Z1P-300-26 Category: Standard Displays

Description
Additional information

Description

RV013Z1P-300-26 is a small size square 1.3 inch LCD display panel, the interface and brightness acceptable for customized, It is a transmissive type display operating in the normal white. This TFT-LCD has a 1.3 inch diagonally measured active area with QVGA resolutions (240 horizontal by 240 vertical pixel array).

How can we do for LCD panel customized?

Custom LCD module size, include

Different size of lcd module and lcd module frame
View angle: IPS/TN
LCD module brightness
Capacitive touch screen panel or no touch

Custom PFC & Backlight

Frame materials: metal, plastic
FPC shape
Interface: MIPI, LVDS, MCU, RGB, EDP, and so on
Pins

Custom CTP

Single touch, multi-touch
In-cell, on-cell
G+G, G+F, +G+FF, GGG

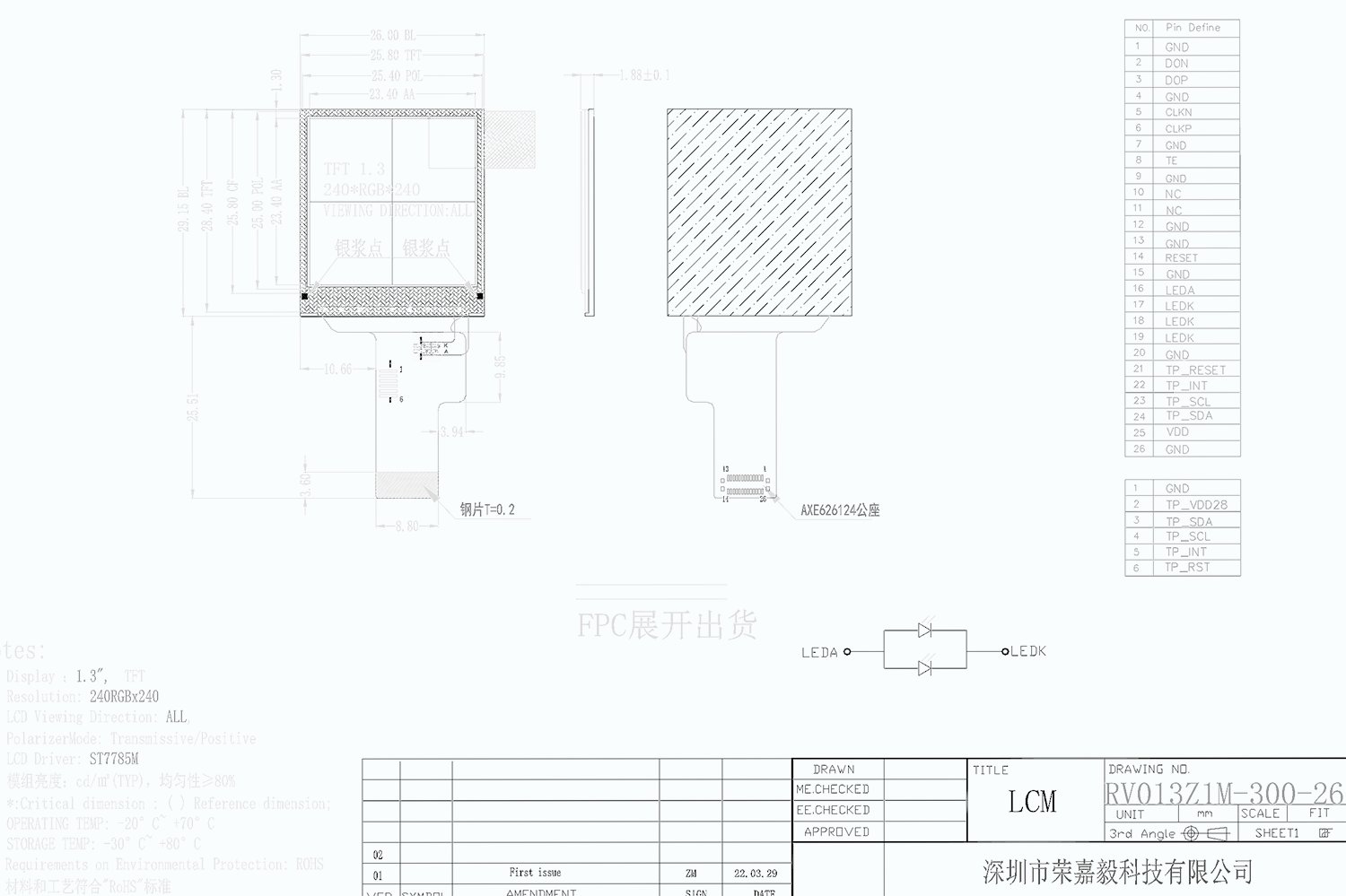

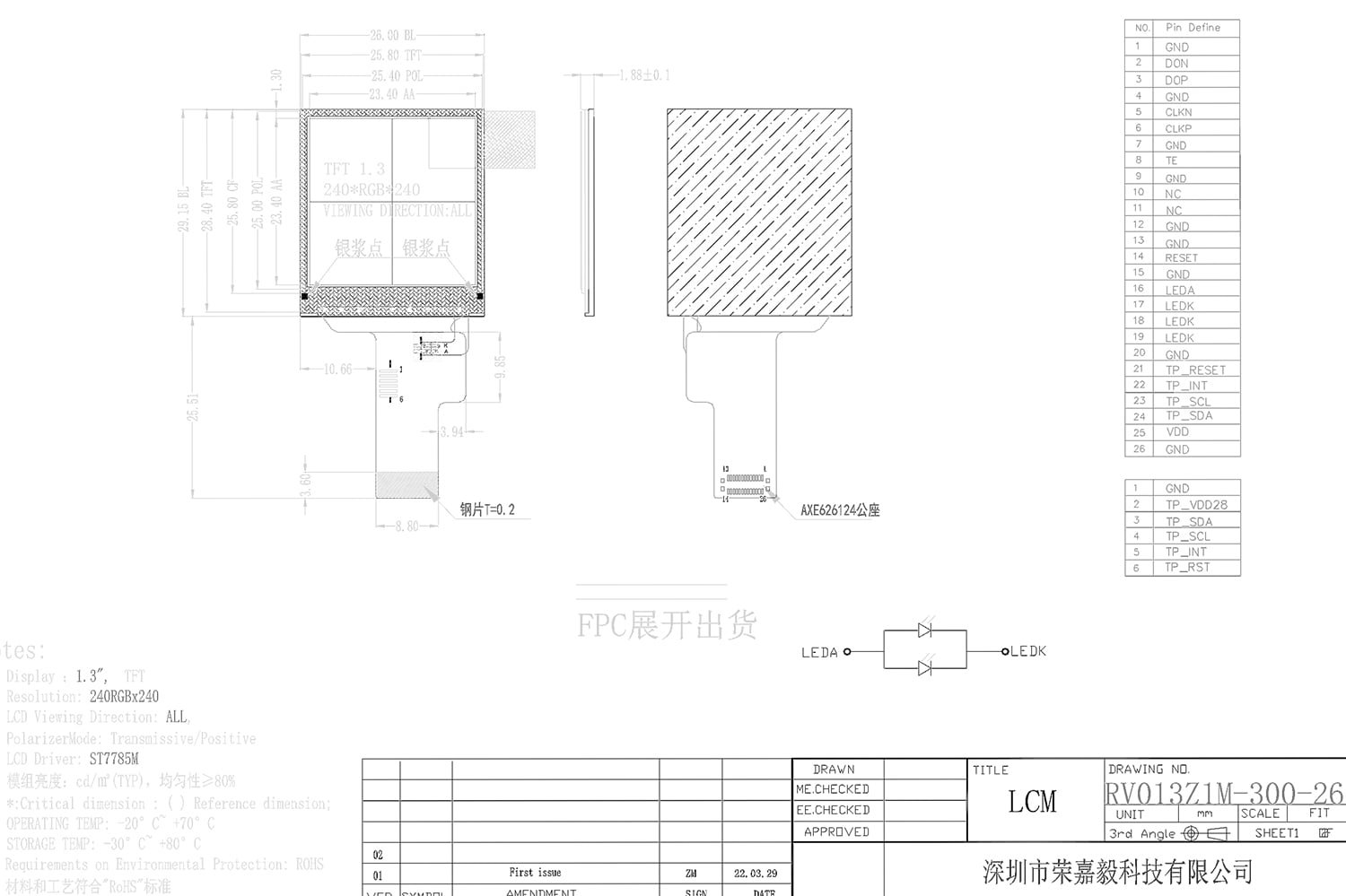

Model	RV013Z1P-300-26
Size	1.3 inch TFT LCD touch screen panel
LCD Type	AM TFT ,TRANSMISSIVE, NEGATIVE
Display Format	240(R,G,B)*240
Input Data	MIPI
View Angle	ALL O”clock
IC Driver	ST7785M
Display Colors	16.7 M
Module Size	26(W)×29.15(L)×1.88(T)
CPT Size	36(W)×36(L)×3.01(T)
Active Area	23.4(W) ×23.4(L)
Pixel Size	0.0975×0.0975
Operating Temperature	-20 to +70 ℃
Storage Temperature	-30 to +80 ℃
LCM Luminance	300 cd/m²
