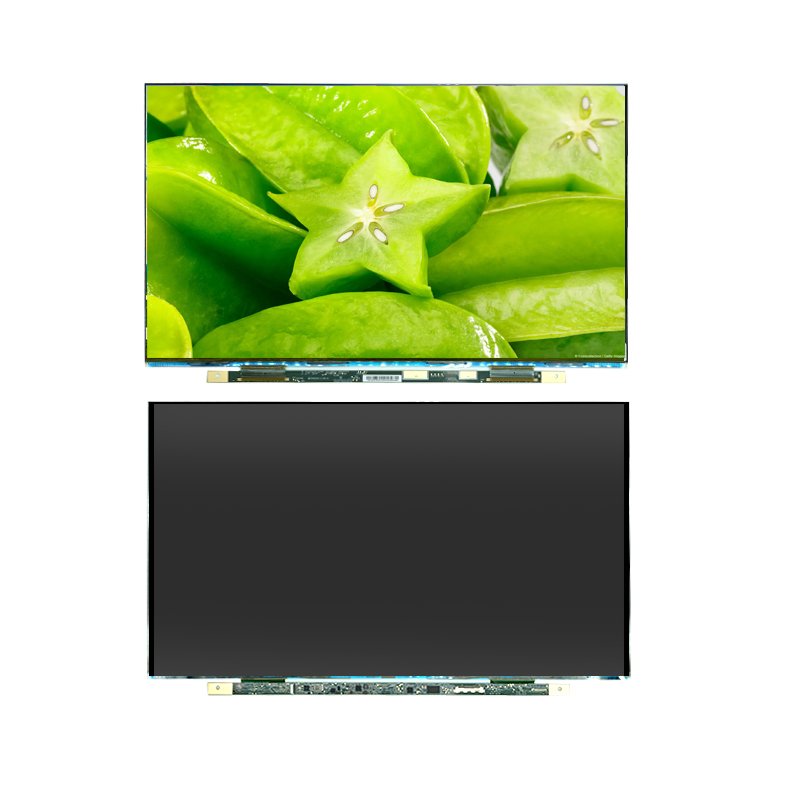

15.6 inch TFT LCD Display - FHD 1920*1080, LVDS Interface

15.6 inch TFT LCD Display - FHD 1920*1080, LVDS Interface - Image 2

15.6 inch TFT LCD Display – FHD 1920*1080, LVDS Interface

FHD Resolution (1920 * 1080)
Very High Contrast Ratio: 3000:1
Ultra Wide Viewing Angle: 178°(H)/178°(V) (CR10)
DE (Data Enable)Mode
LVDS (Low Voltage Differential Signaling) Interface

SKU: RV156FHM-280-30 Category: Standard Displays

Description
Additional information

Description

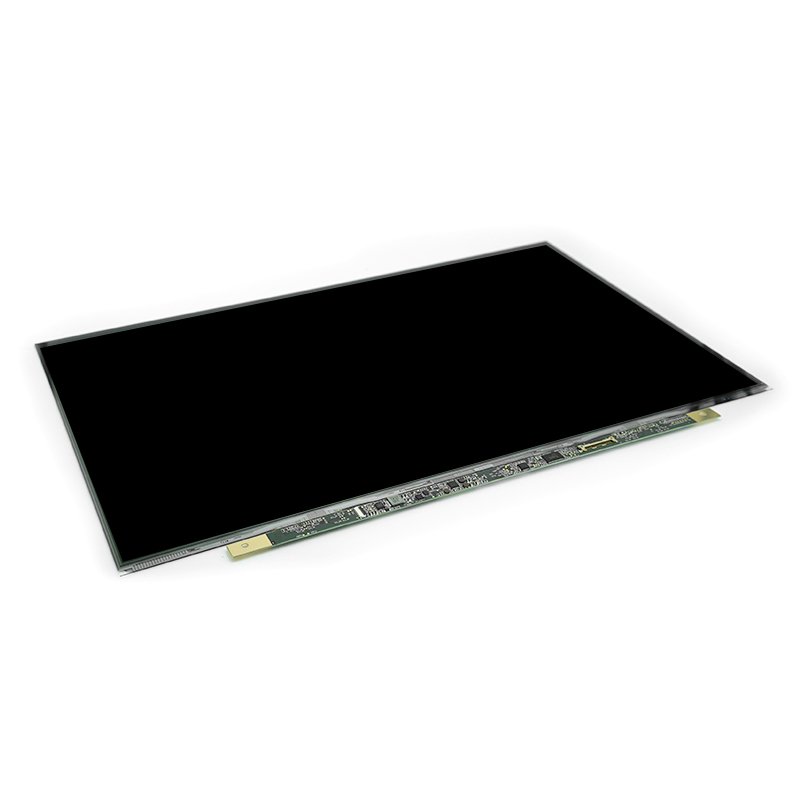

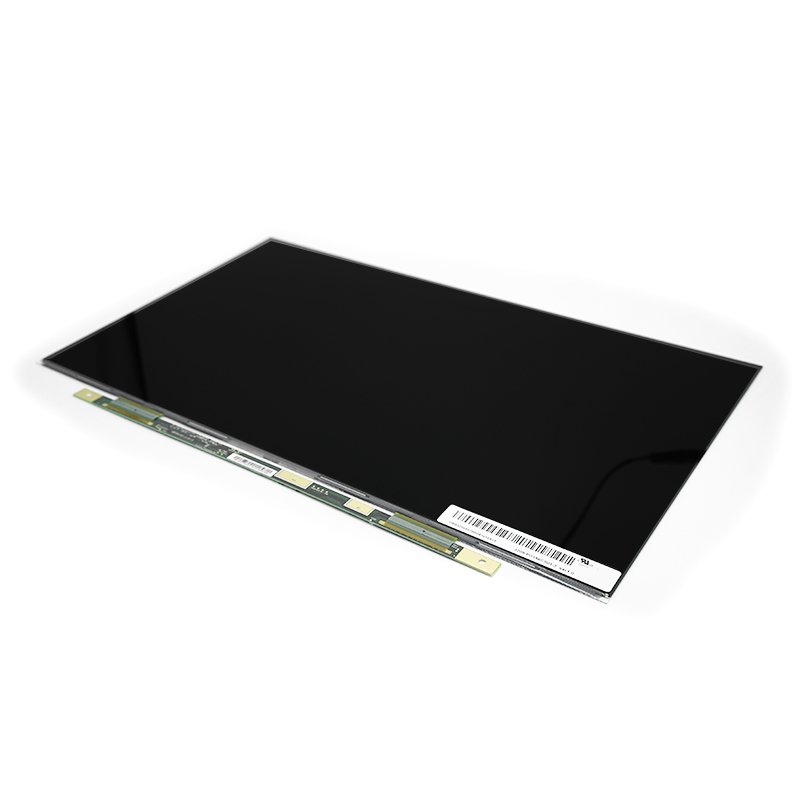

The MG1561B01-1 is a 15.6-inch full-HD TFT LCD panel designed for high-performance human-machine interface applications, industrial control systems, and embedded display terminals.
Built on a-Si TFT active matrix technology, it delivers superior image clarity, wide viewing angles, and consistent color accuracy across environments. With an anti-glare surface, 72 % NTSC color gamut, and a 3000:1 contrast ratio, it ensures crisp visibility even in challenging lighting conditions.

Key Features

High Definition: 1920 × 1080 resolution for clear, detailed image reproduction.
Wide Viewing Angle: +89/-89 (H) and +89/-89 (V) for excellent readability from any direction.
High Contrast Ratio: 3000:1 (typ.) ensures deep blacks and vivid color contrast.
Optimized Brightness: 250 cd/m² (typ.) for balanced indoor performance.
Durable Surface: Anti-glare (25 % haze) with 3H hard coating for scratch resistance.
Energy-Efficient Backlight: E-LED type providing long lifespan and low power consumption.
Flexible Integration: Standard 40-pin interface supports a variety of controller boards.
Versatile Mechanical Options: Available with or without PCB (6.3 mm / 3.2 mm thickness).

Technical Specifications

Parameter	Specification
Active Area	344.16 (H) × 193.59 (V) mm

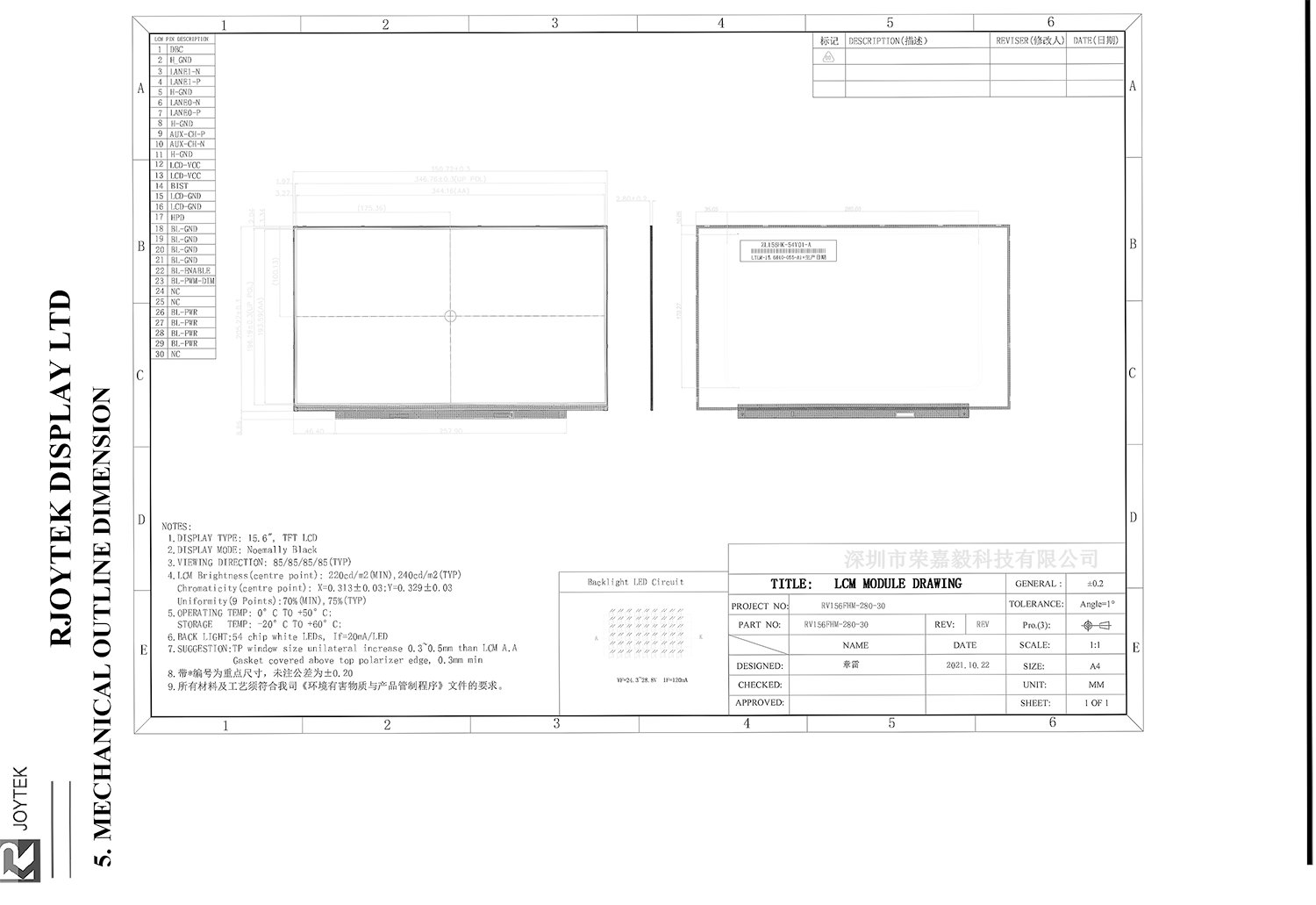

Module Size	351.86 (H) × 206.33 (V) × 6.3 (D) mm (with PCB) / 3.2 (D) mm (without PCB)
Pixel Pitch	59.75 × 179.25 µm
Pixel Arrangement	RGB Vertical Stripe
Display Colors	16.7 M (8-bit)
Color Gamut	NTSC 72 % (typ.)
Display Mode	Transmissive, Normally Black
Backlight Type	E-LED
Interface	40 pin
Contrast Ratio	3000:1 (typ.)
Viewing Angle	+89/-89 (H), +89/-89 (V) (typ.)
Luminance	250 cd/m² (typ.)
Surface Treatment	Anti-glare (25 % haze), 3H Hard Coating
