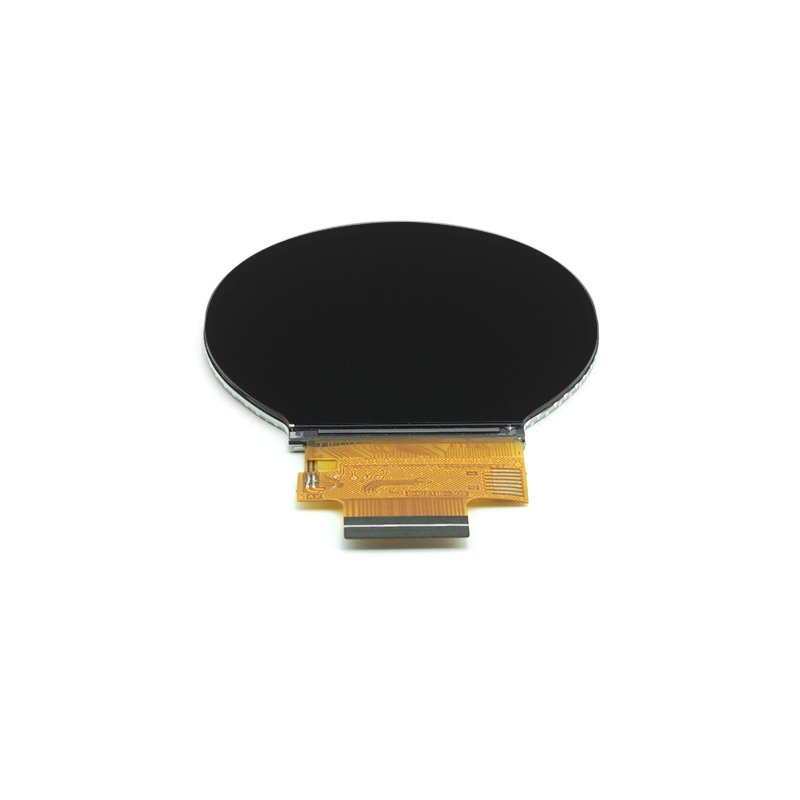

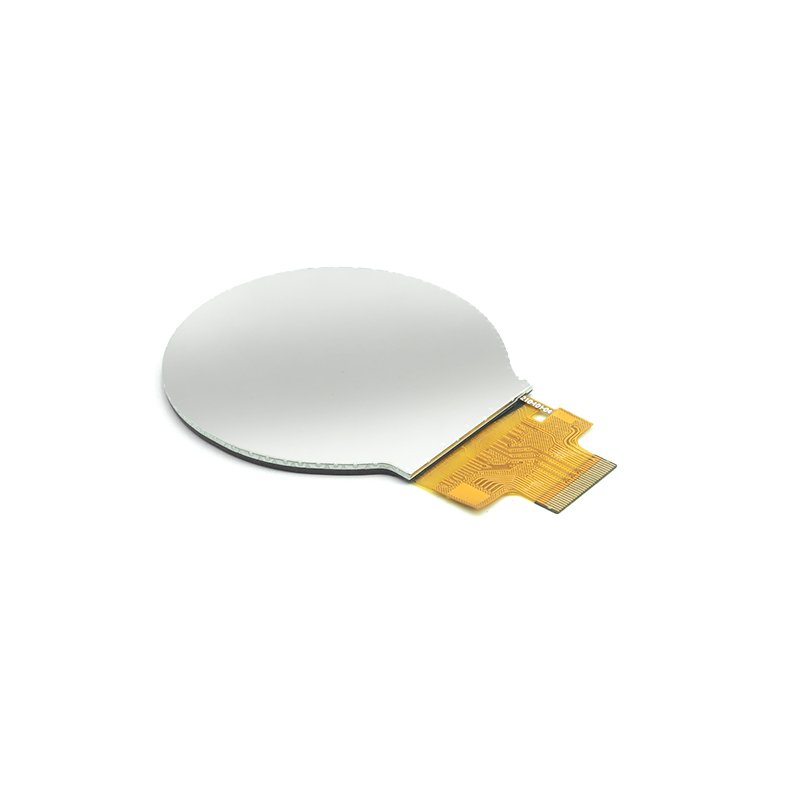

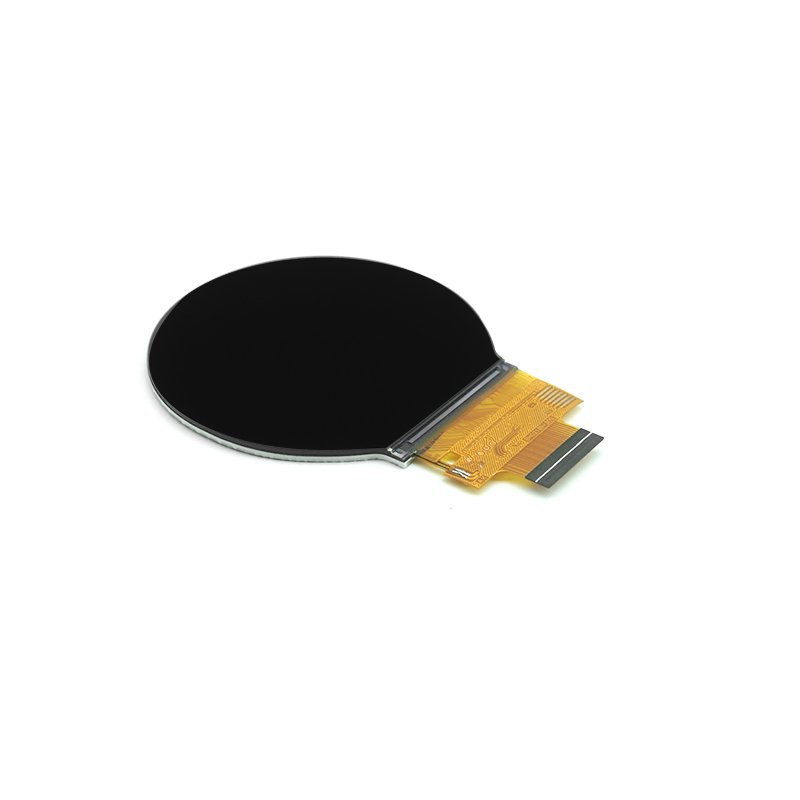

2.1 inch Round LCD Display – 480*480 IPS Panel RGB SPI LCD Module

  • Size: 2.1 inch round lcd display
  • IC Driver: ST7701S
  • Resolution: 480*480
  • Interface: 3SPI+18RGB
  • Luminance: 300 cd/m²
  • Touch: with touch/ no touch
SKU: RV021Z6M-400-40 Categories: ,

Description

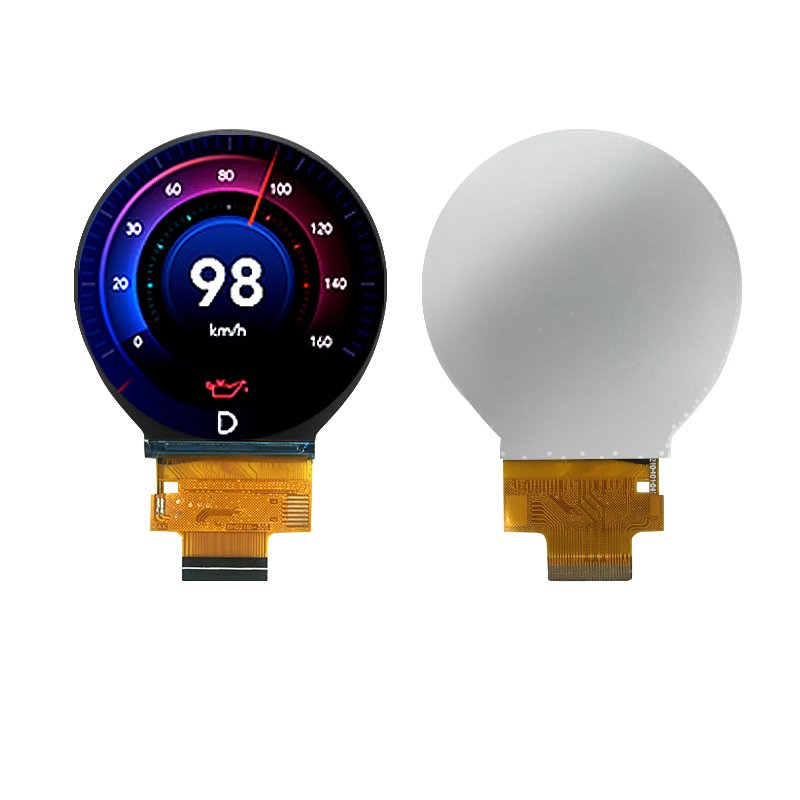

This small size 2.1 inch tft lcd display panel you could choose two type, with touch or no touch, it is a round lcd display panel with RGB+SPI interface, all view angle.

we custom different size of LCD module, add touch screen, custom for the brightness and control board, we provide one-stop LCD solution include capacitive touch, drive board, FPC and so on.
contact us to tell us your requirements.

Additional information

Size(inch)

2.1
Resolution

480×480
Brightness (cd/m²)

300
Wide Temperature

No
