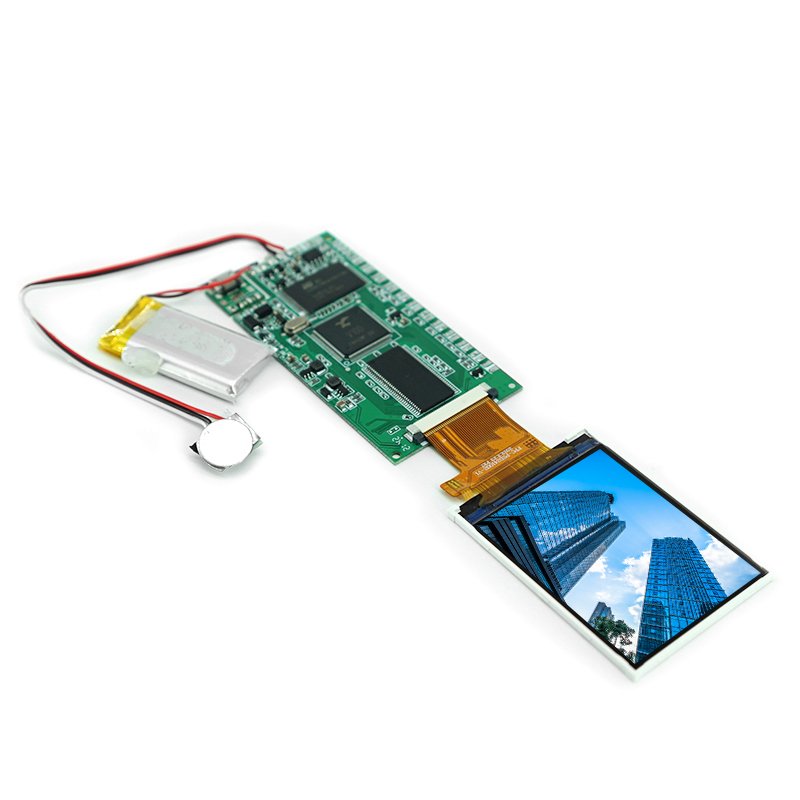

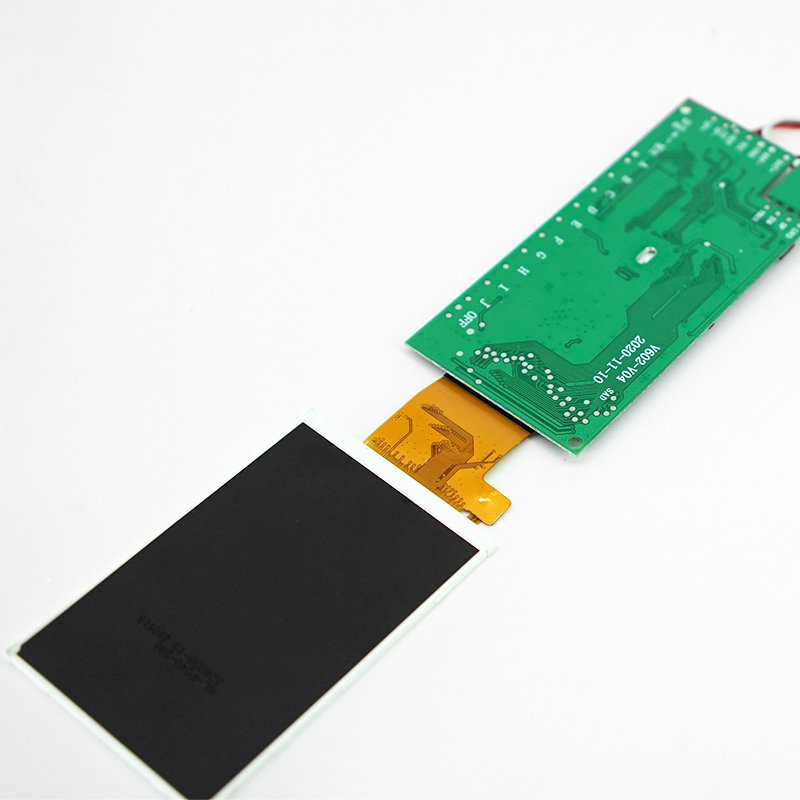

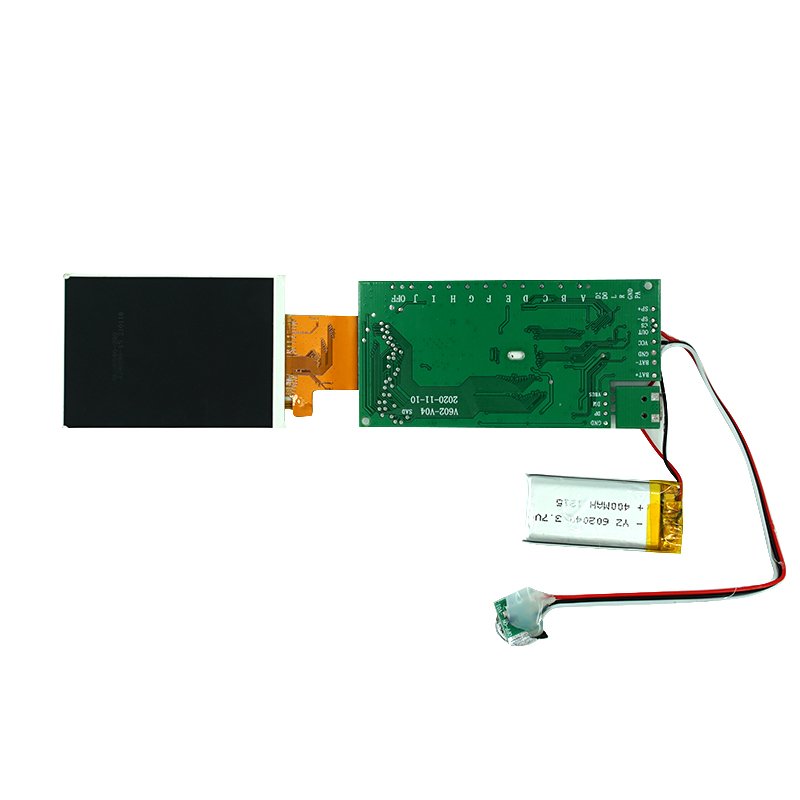

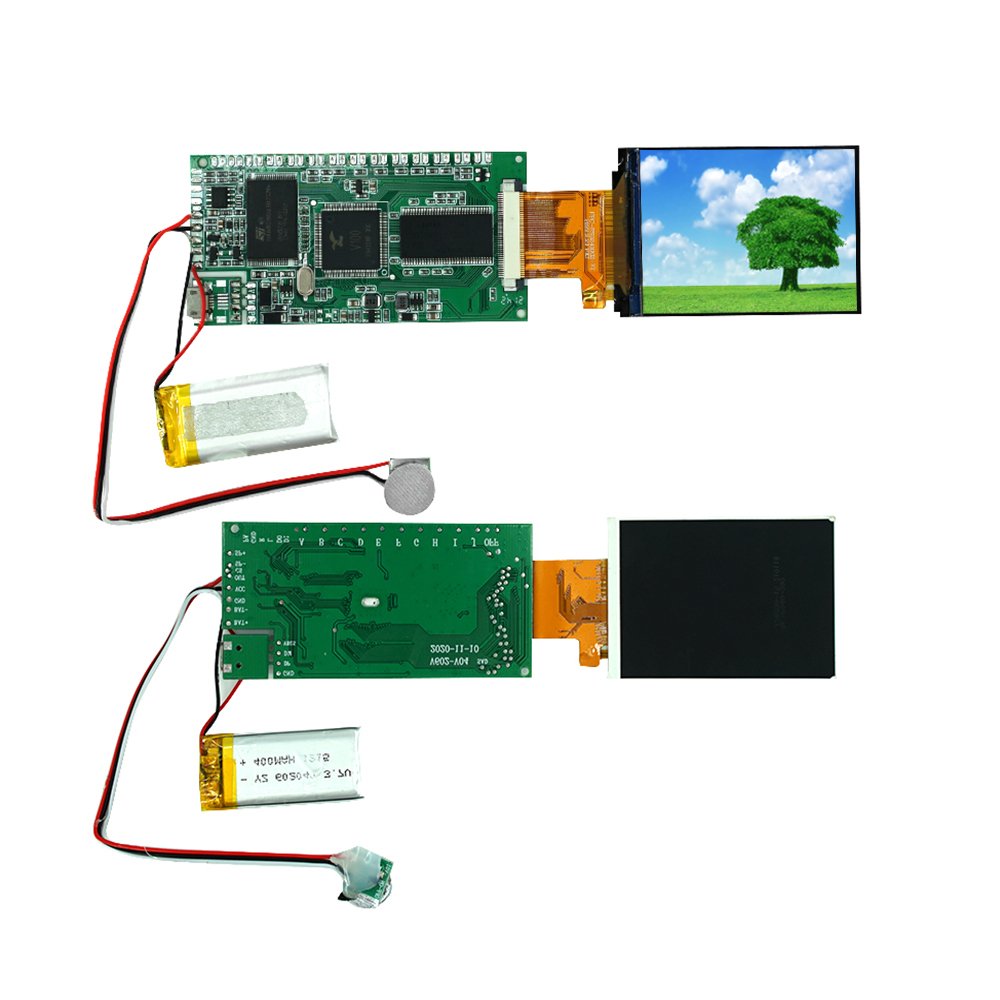

2.4-inch TFT LCD Display – 480*640 IPS TFT LCD display module with control board
Description
RV024VGM-420-40 is a 480*320 resolution RGB interface TFT LCD module, IC Driver is ST7701S, with Operating Temperature -20 to +70 degrees and Storage Temperature degrees, LCM Luminance is 420nit. The interface is acceptable to change to SPI, MCU and so on, and the brightness is acceptable to customized, and supporting HDMI board and other LCD control boards, such as control for video, with USB, VGA interface and so on.
Additional information
| Size(inch) | 2.4 |
|---|---|
| Interface | SPI |
| Resolution | 480×640 |
| Brightness (cd/m²) | 420 |
