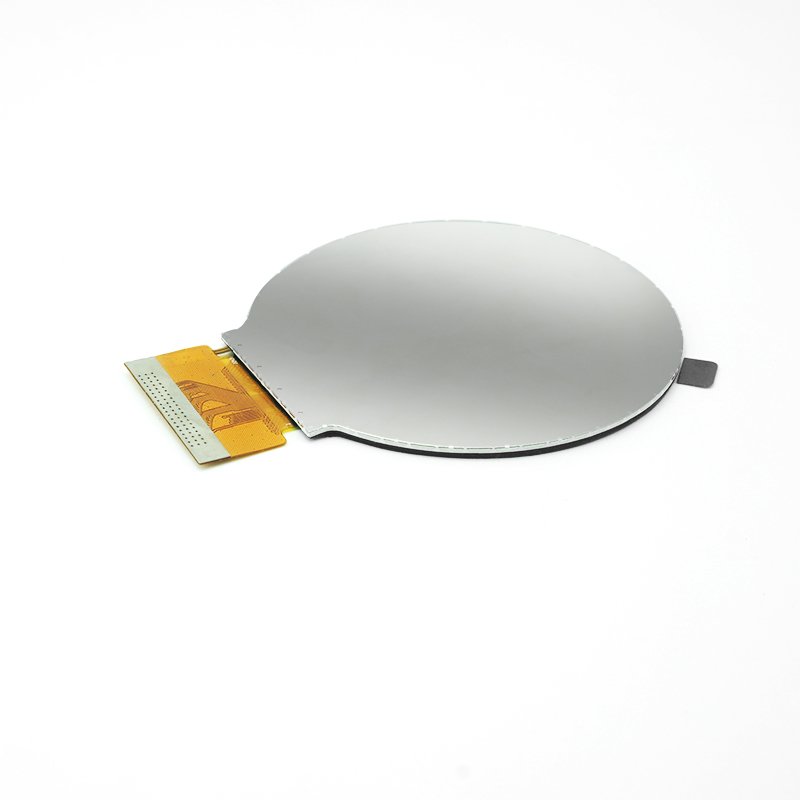

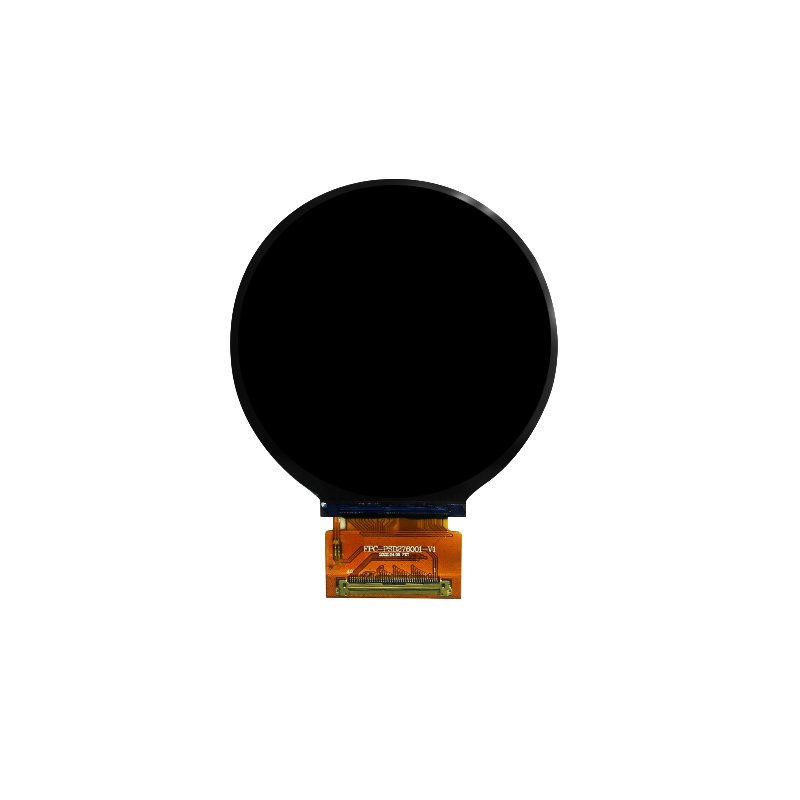

2.8 inch Round LCD Display – 480*480 IPS TFT LCD Module, Touch Screen

  • Size: 2.8 inch tft lcd module
  • Resolution: 480*480
  • Touch: with touch
  • Input Data: RGB
  • IC Driver: ST7701S
  • LCM Luminance: 400 cd/m²
SKU: RV028Z6M-400-40 Category:

Description

High-performance 3.5-inch TFT LCD Display Module, meticulously engineered to deliver vivid visuals and superior reliability. Featuring an all-angle view, advanced driver integration, and robust environmental resilience, this module is ideal for a variety of embedded and industrial display applications.

Item Details
Display Type AM TFT, Transmissive, Negative
Resolution 480(RGB) × 480 dots
Display Colors 16.7 Million (24-bit RGB)
Viewing Angle All o’clock (Wide Viewing Angle)
Interface RGB-24 bit parallel data interface
Driver IC ST7701S
Luminance 400 cd/m² (Typical)

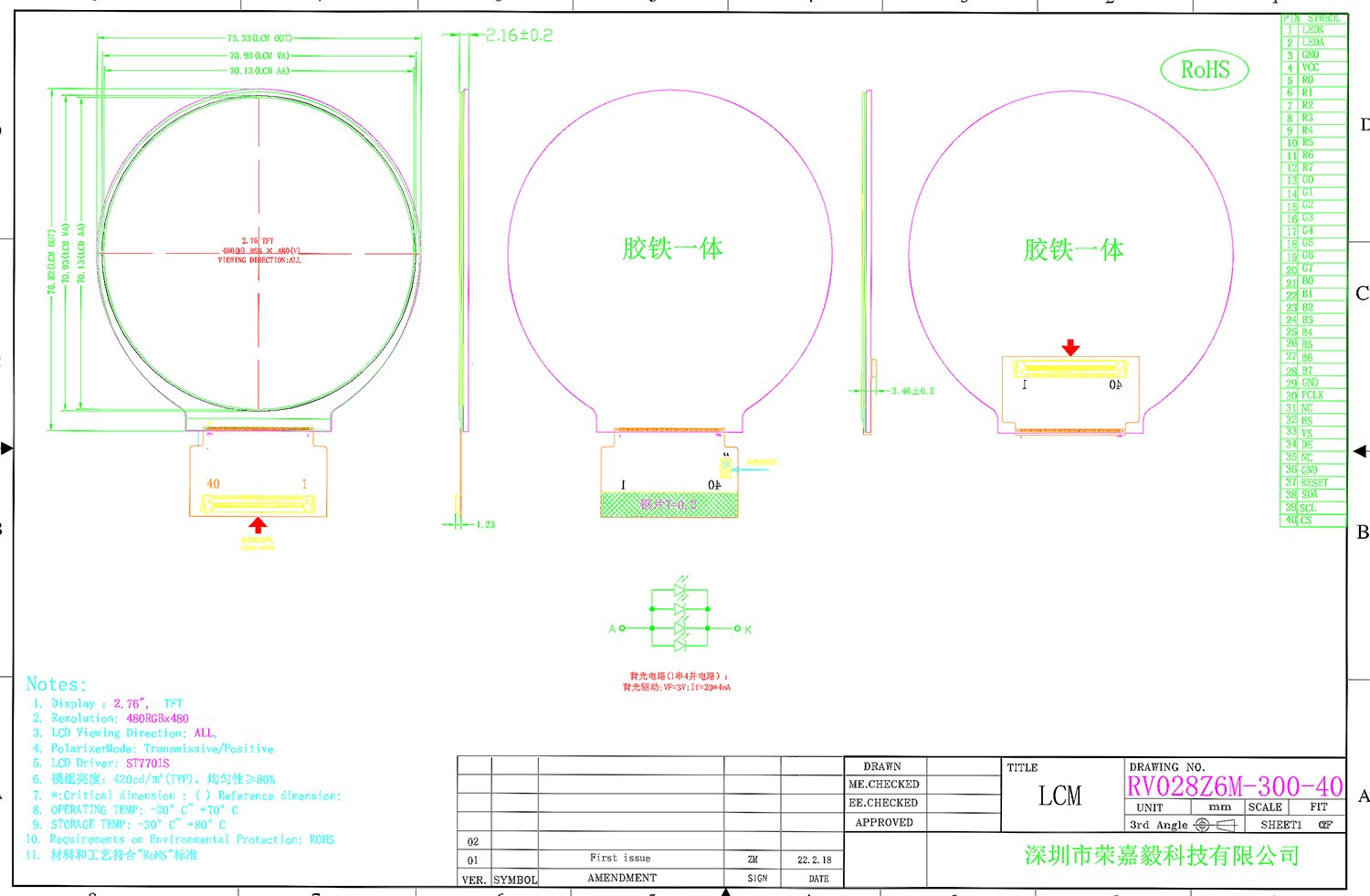

Module Dimensions 73.33(W) × 76.82(L) × 2.2(T) mm
Active Area 70.13(W) × 70.13(H) mm
Pixel Pitch 0.1461(W) × 0.1461(H) mm
Operating Temp. -20°C to +70°C
Storage Temp. -30°C to +80°C
Weight 21 grams

Key Features

  • High Resolution, Square Format
    480×480 pixel layout in a square format for balanced display design, ideal for circular GUI elements and modern UI layouts.

  • Wide Color Gamut & Depth
    Supports 16.7 million colors via RGB-24 input, delivering rich and accurate color reproduction.

  • Full Viewing Angle
    All o’clock viewing ensures excellent readability from any direction, suitable for dynamic mounting angles.

  • High Brightness
    400 cd/m² brightness level allows for clear visibility even in bright ambient environments.

  • Thin & Lightweight Design
    At just 2.2mm thick and 21g, it’s ideal for compact device integration without adding bulk.

  • Reliable ST7701S Driver
    Built-in ST7701S controller ensures compatibility with a wide range of MCUs and GPU platforms.

  • Industrial Temperature Support
    Operates stably in a wide temperature range, ensuring dependable performance in harsh conditions.

Customization & Support

We offer flexible customization options including:

  • Optional capacitive or resistive touch panels

  • Custom FPC designs and connector formats

  • Optical bonding and anti-glare coating

  • Brightness adjustments and wide viewing enhancement

All modules are manufactured under strict quality control with full RoHS compliance. Technical datasheets, 3D CAD files, and integration support are available upon request.

RJY Display – Your trusted partner in professional display module solutions.
We specialize in customized TFT LCD modules for industrial, medical, and consumer-grade products.

Additional information

Resolution

480×480
Brightness (cd/m²)

400
Interface

RGB
