2 inch LCD Module 320*240 TFT Display

Size: 2 inch lcd module
Resolution: 320*240
Brightness: 300nit
Interface: SPI
IC Driver: ILI9342

Support

With HDMI board
Custom Touch
Custom brightness
Get LCD board support

Category: Uncategorized

Description

Description

RV020QVM-300-12 is a small size 2.0 inch TFT LCD display with 320*240 resolution, the 2-inch 320×240 TFT LCD module features a Serial Peripheral Interface (SPI) interface, which allows for seamless connectivity with a wide range of microcontrollers and embedded systems.

This Driver IC is ILI9642, view angle is all O”clock IPS LCD nodule.

More small TFT LCD panel such as 1.3 inch, 1.96 inch or 2.5 inch, 2.4 inch, 2.1 inch or 2.8 inch LCD display panel you need, please send us inquiry.

Model	RV020QVM-300-12
Size	2.0 inch TFT LCD Module
LCD Type	AM TFT ,TRANSMISSIVE, NEGATIVE
Display Format	320(R,G,B)*240
Input Data	SPI
View Angle	ALL O”clock
IC Driver	ILI9342
Display Colors	16.7 M

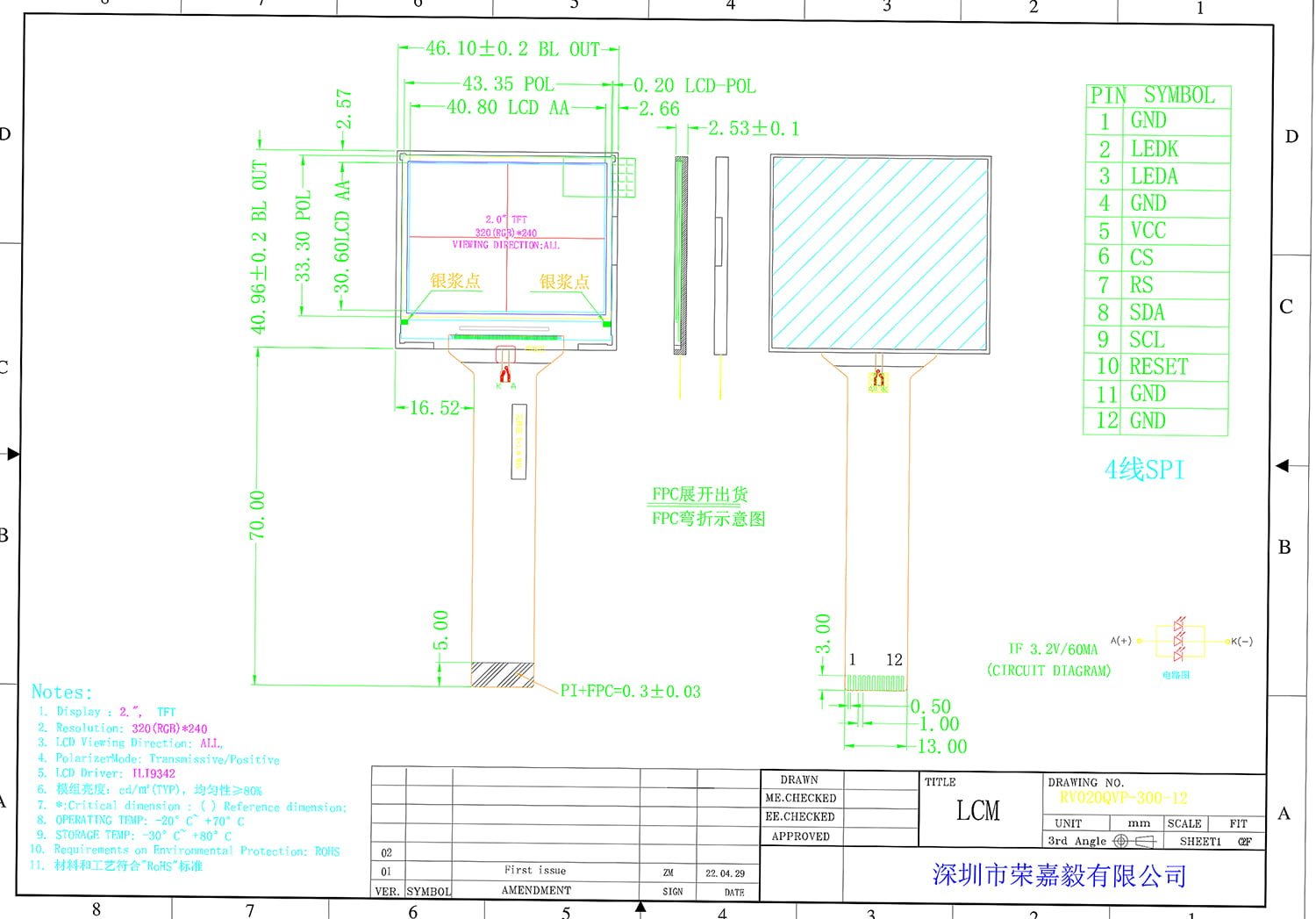

Module Size	46.1(W)×40.96(L)×2.53(T)
Active Area	40.8(W) ×30.6(L)
Pixel Size	0.0975×0.0975
Operating Temperature	-20 to +60 ℃
Storage Temperature	-30 to +70 ℃
LCM Luminance	300 cd/m²
