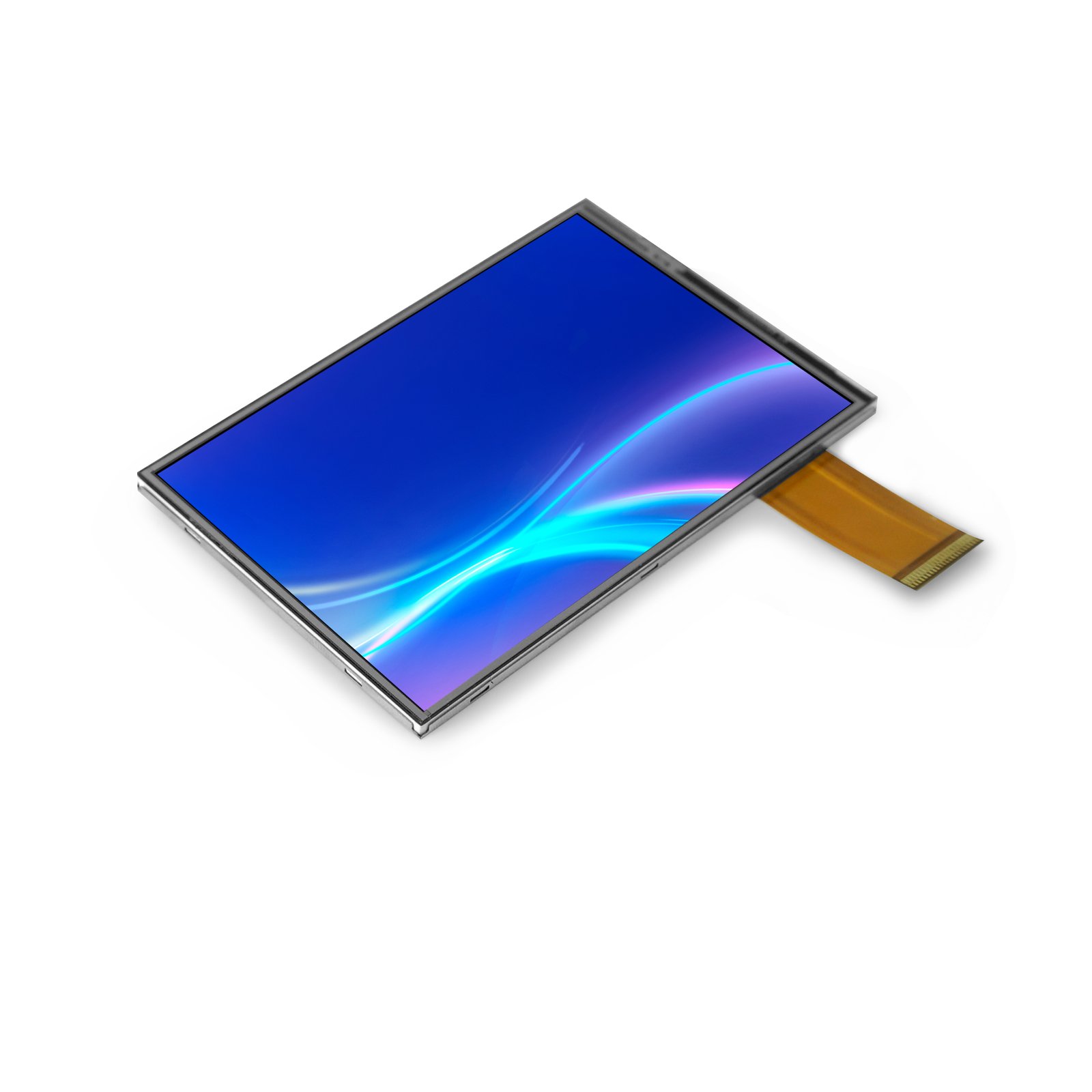

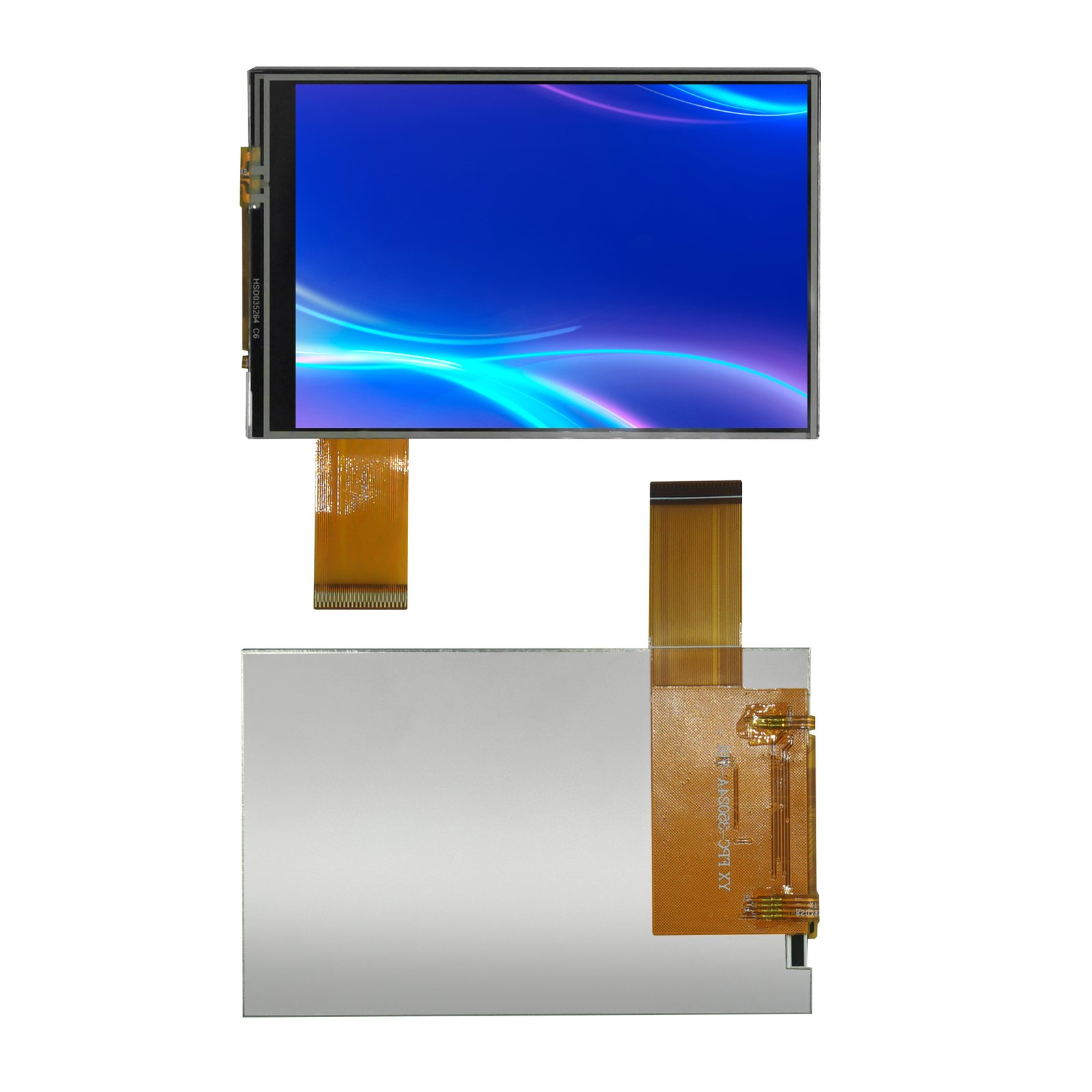

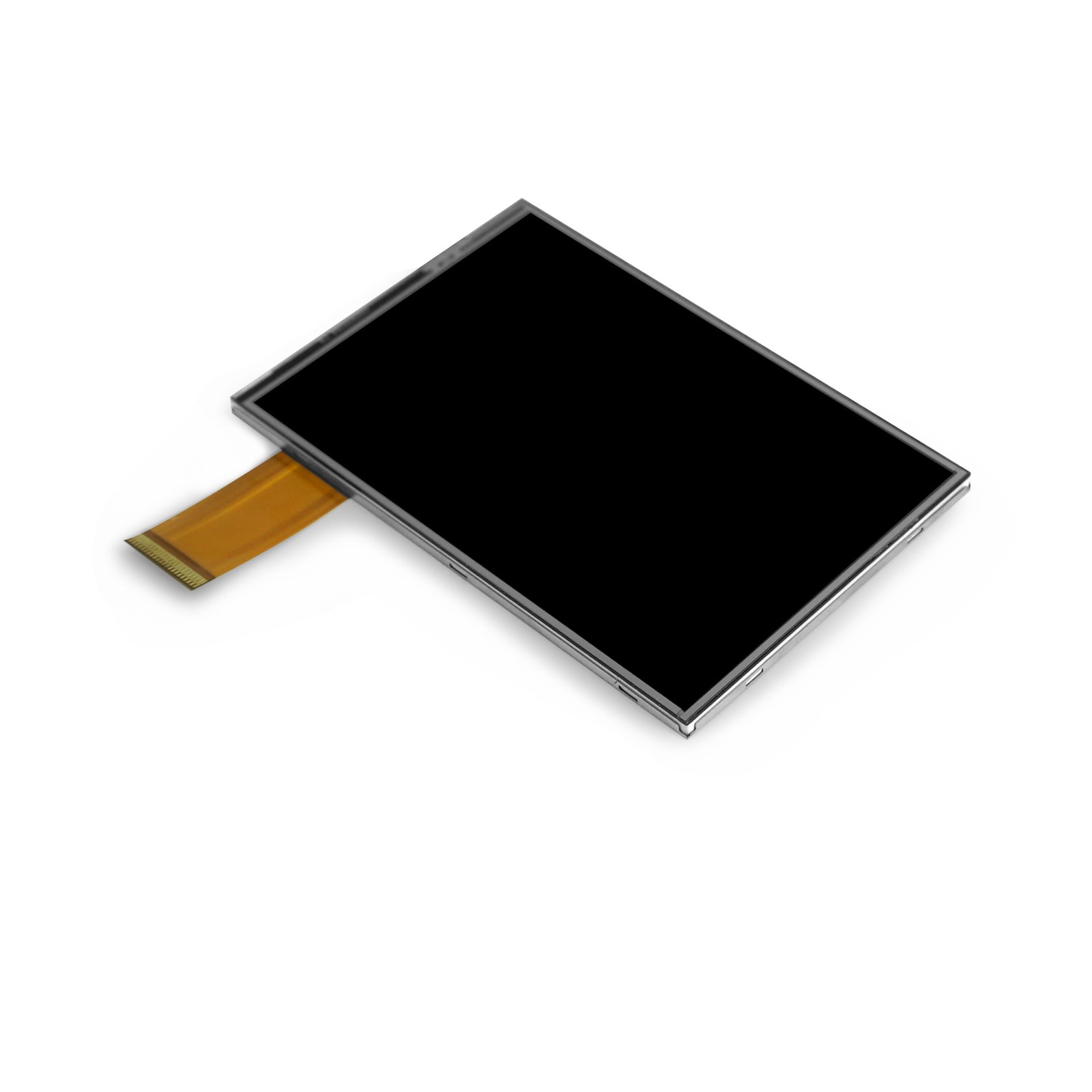

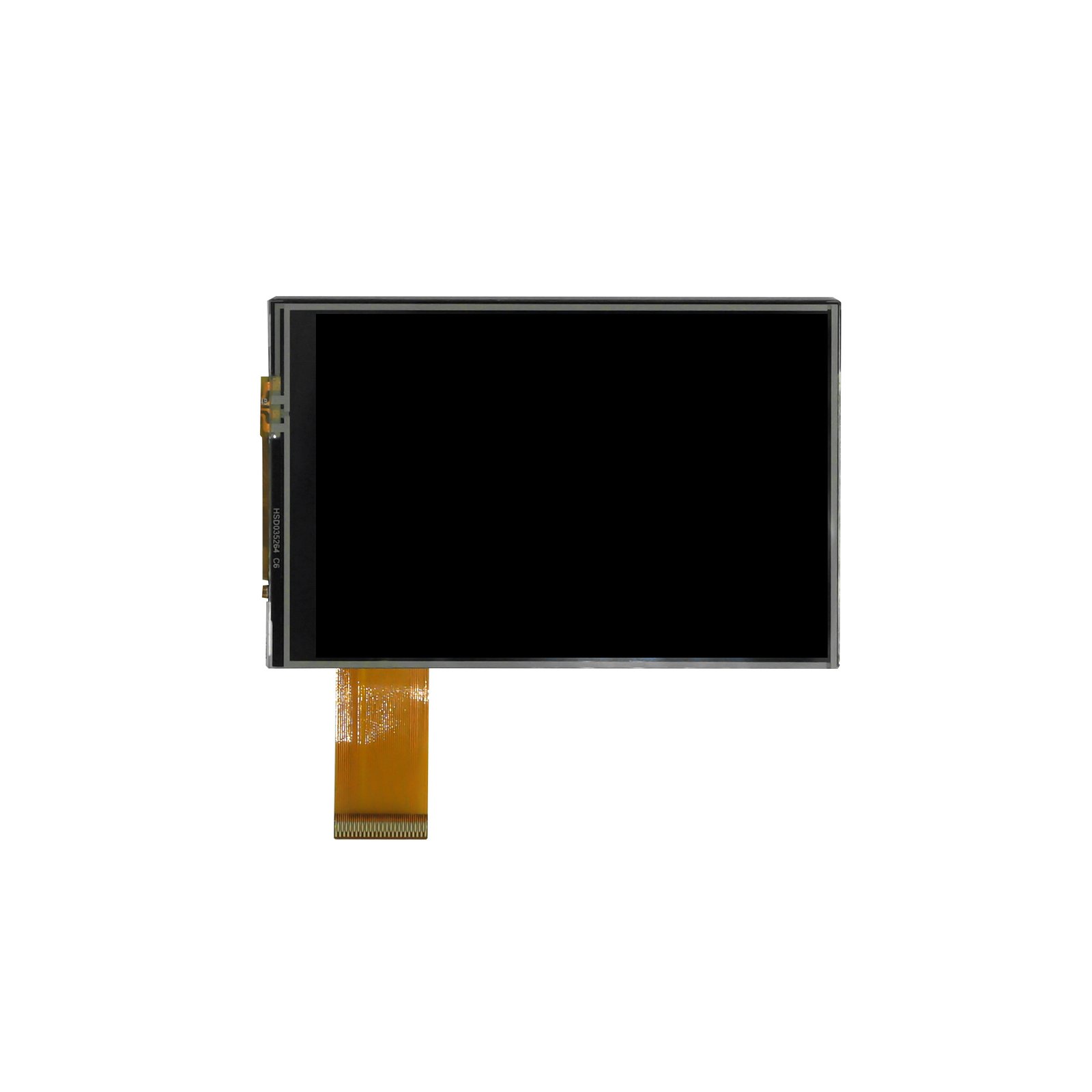

3.5 inch TN LCD TFT Display – 320*480, RGB Interface
- Model: RV035HVP-300-45
- Size: 3.5 inch lcd module
- Resolution: 320*480
- Interface: MCU/RGB
- LCM Luminance: 300 cd/m²
Description
| Size | 3.5 inch tft lcd module |
| LCD Type | TN TFT ,TRANSMISSIVE |
| Display Format | 320(R,G,B)*480 |
| Input Data | MCU/RGB |
| View Angle | 12 O”clock |
| IC Driver | ILI9488 |
| Display Colors | 16.7 M |

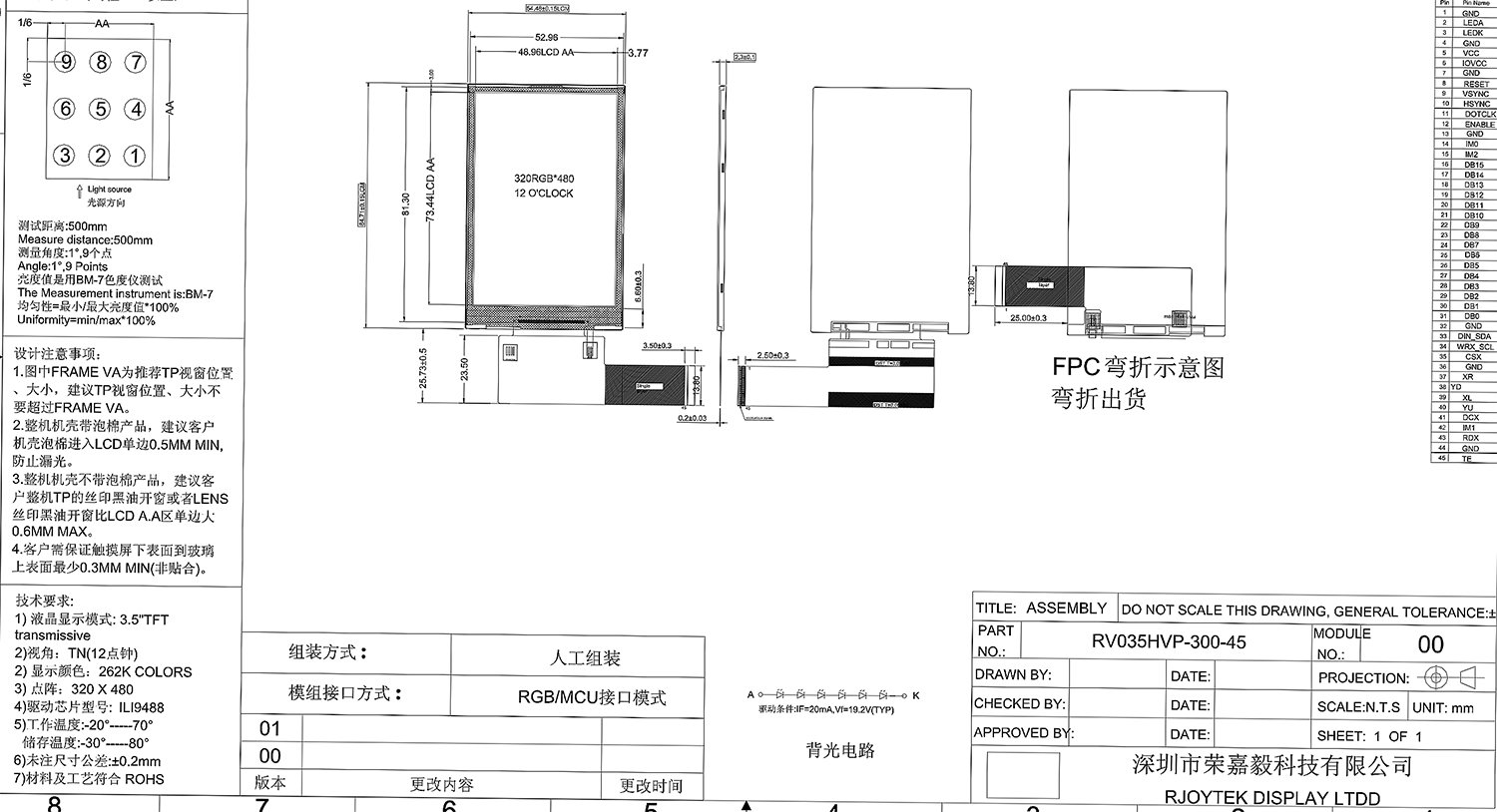

| Module Size | 54.48(W)* 84.71 (H)*2.3(T) |
| Active Area | 48.96(W)* 73.44(H) |
| Pixel Size | 0.08625*0.08625 |
| Operating Temperature | -20 to +70 ℃ |
| Storage Temperature | -30 to +80 ℃ |
| LCM Luminance | 300 cd/m² |
Additional information
| Size(inch) | 3.5 |
|---|---|
| Brightness (cd/m²) | 300 |
| Interface | RGB |
| Resolution | 320×480 |
| Viewing Angle | All |
