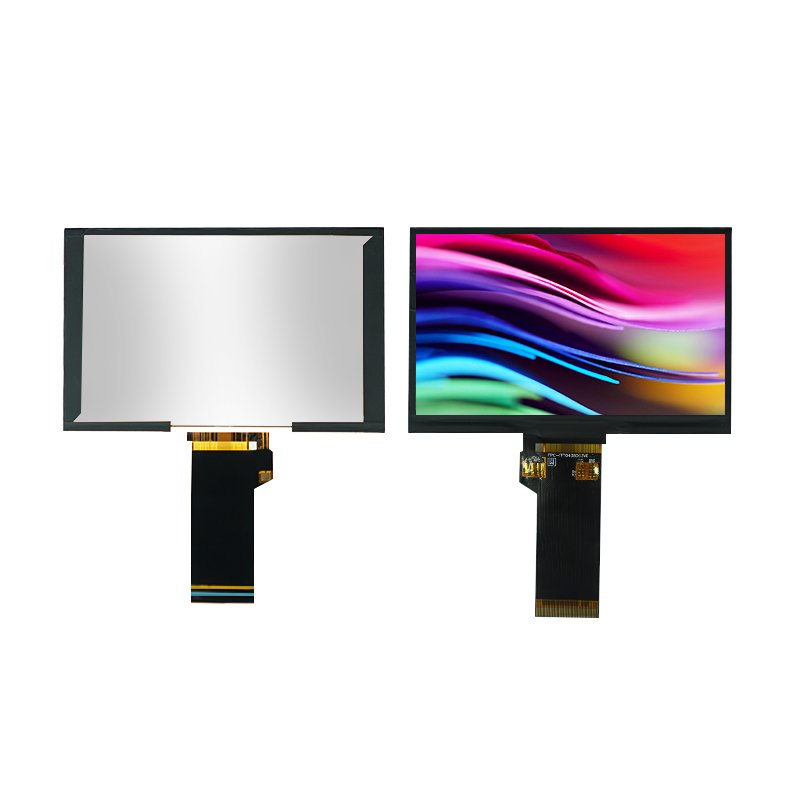

4.3 inch TFT LCD Display - 480*800 Resolution, RGB SPI Interface
4.3 inch TFT LCD Display - 480*800 Resolution, RGB SPI Interface - Image 2

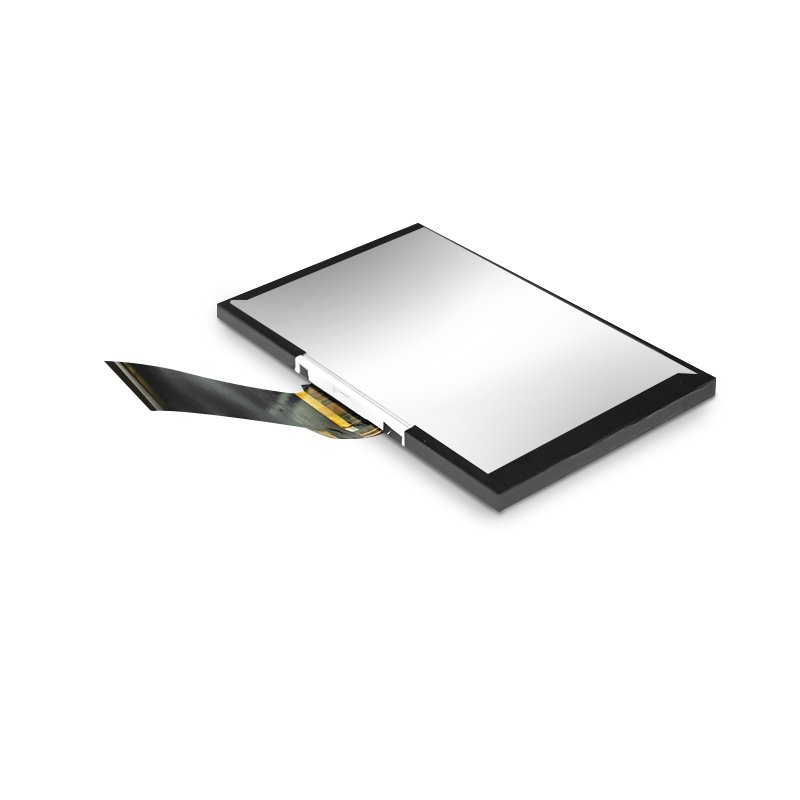

4.3 inch TFT LCD Display - 480*800 Resolution, RGB SPI Interface - Image 3

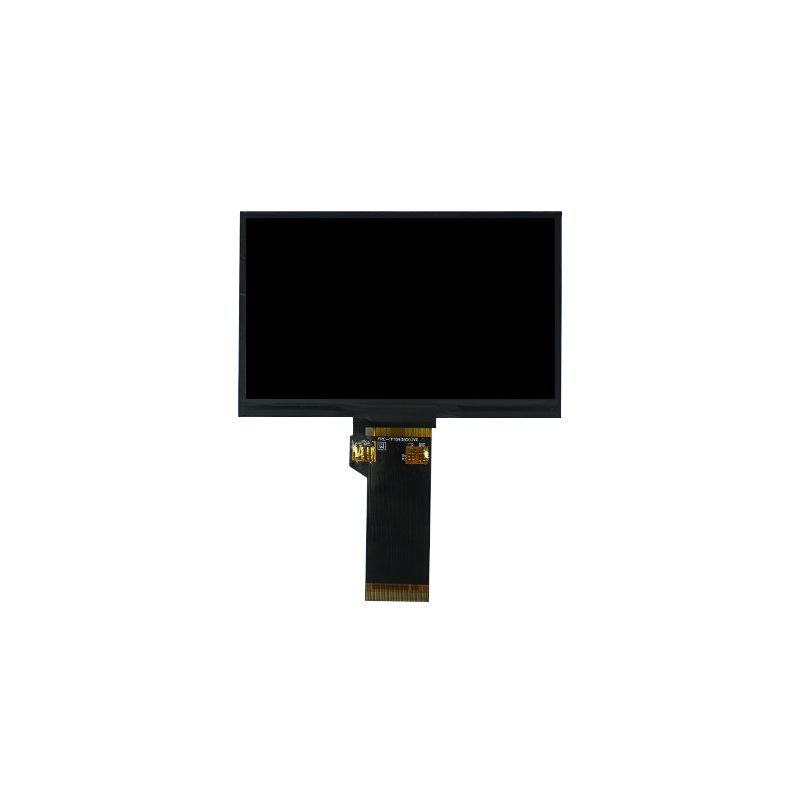

4.3 inch TFT LCD Display - 480*800 Resolution, RGB SPI Interface - Image 4

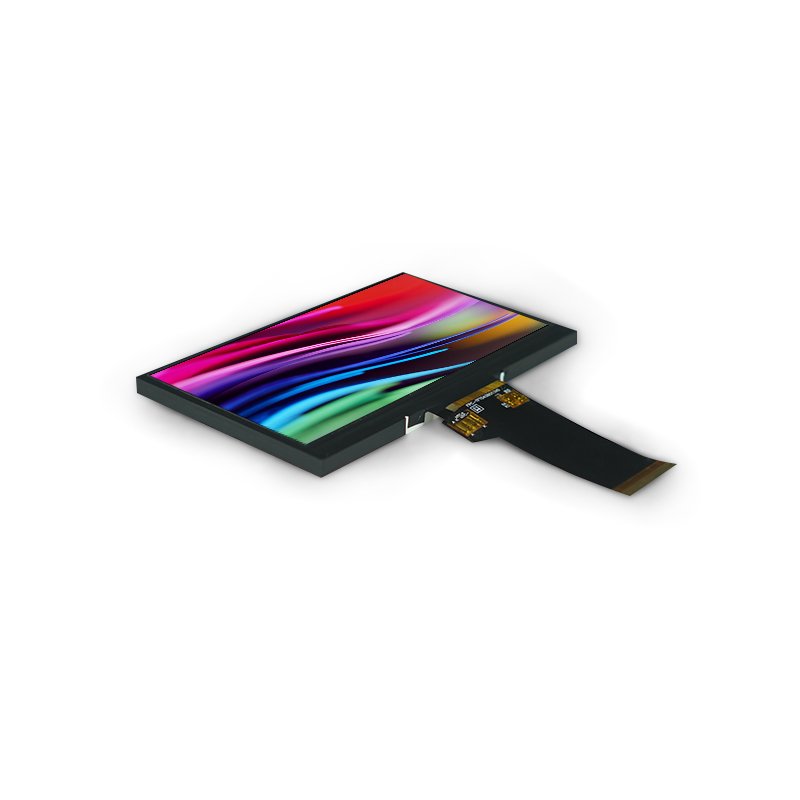

4.3 inch TFT LCD Display - 480*800 Resolution, RGB SPI Interface - Image 5

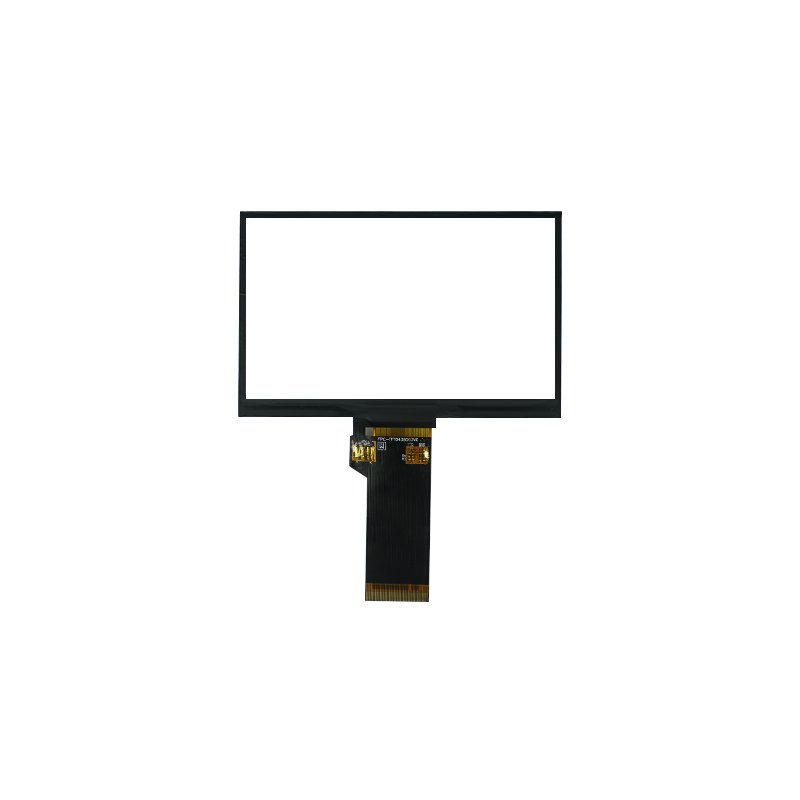

4.3 inch TFT LCD Display - 480*800 Resolution, RGB SPI Interface - Image 6

4.3 inch TFT LCD Display – 480*800 Resolution, RGB SPI Interface

  • Size: 4.3 inch
  • Resolution: 480*800
  • Interface: RGB+SPI
  • LCD Type: TFT/TRANSMISSIVE
  • Storage temperature: -30-70 °C
SKU: RV043FHM-K10-60 Category:

Description

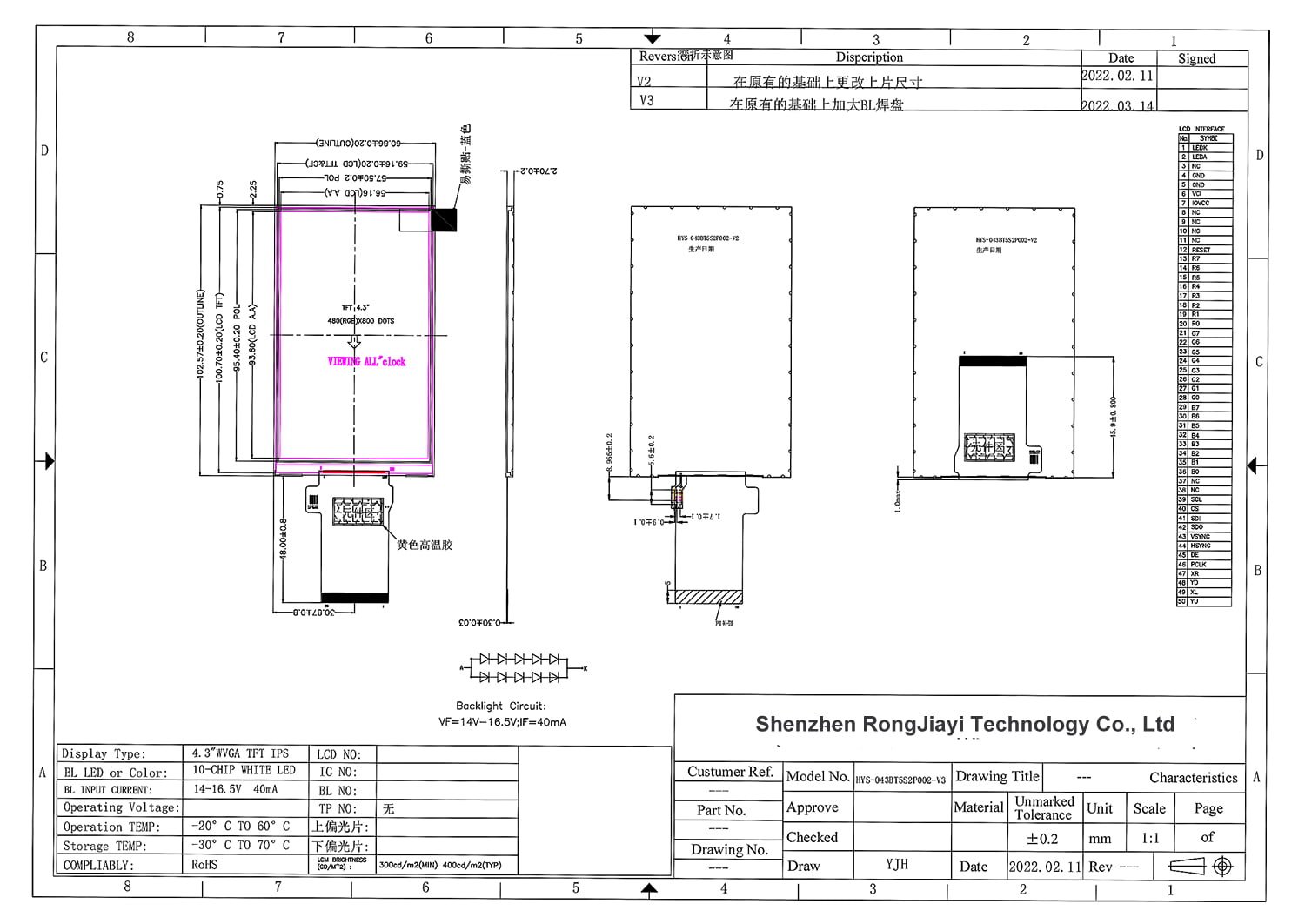

Model HYS-043BT5S2P002_V3
Size 4.3 inch LCD Display
LCD Type TFT/TRANSMISSIVE
Module area 60.86(H) *102.57(V) *2.7(T)
Active area (W×H) 56.16(W)*93.6(L)
Number of Dots 480(RGB)×800
Pixel pitch (W× H) 0.117(H) × 0.117(V)
Driver IC S6D77A1A01-B0E1
Interface Type System RGB+SPI interface
Colors 16.7M
Operating temperature -20-70 °C
Storage temperature -30-70 °C



Additional information

Size(inch)

4.3
Brightness (cd/m²)

1000
Resolution

800×480
Interface

SPI, RGB
Wide Temperature

Yes
Viewing Angle

All
