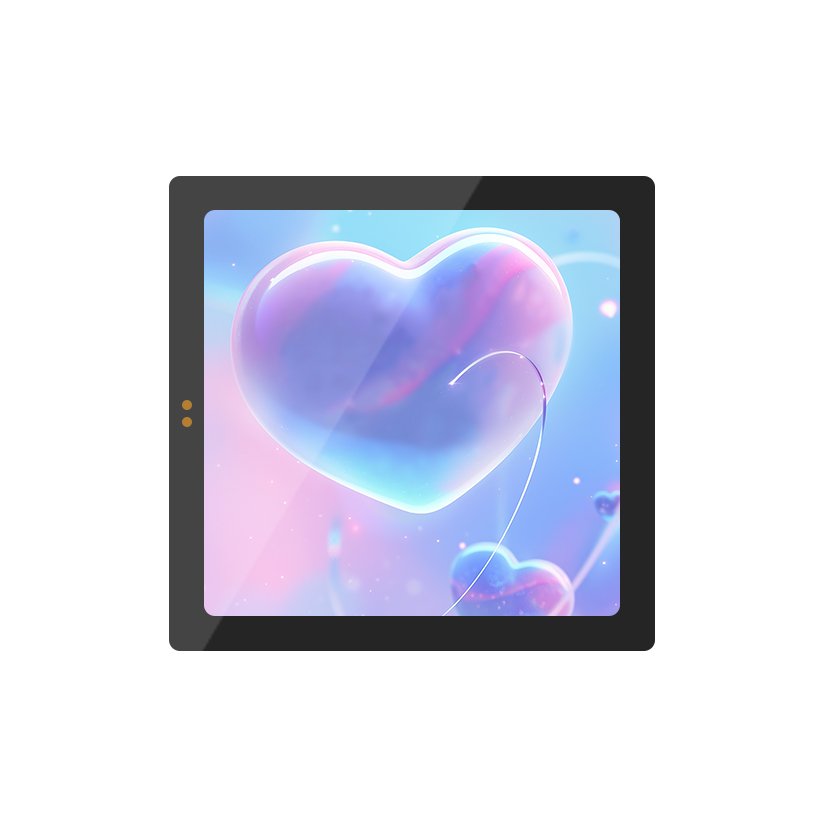

4-inch TFT LCD Screen – Sunlight Readable, 320*240 Resolution

  • Size: 3.95 inch TFT LCD module

  • Resolution: 480×480

  • Interface: RGB + SPI

  • Touch: Capacitive touch with NT8052C IC

  • View Angle: All O’Clock

  • IC Driver: ST7701

  • LCD Type: AM TFT, Transmissive

SKU: RV040Z6P-300-40 Category: Tag:

Description

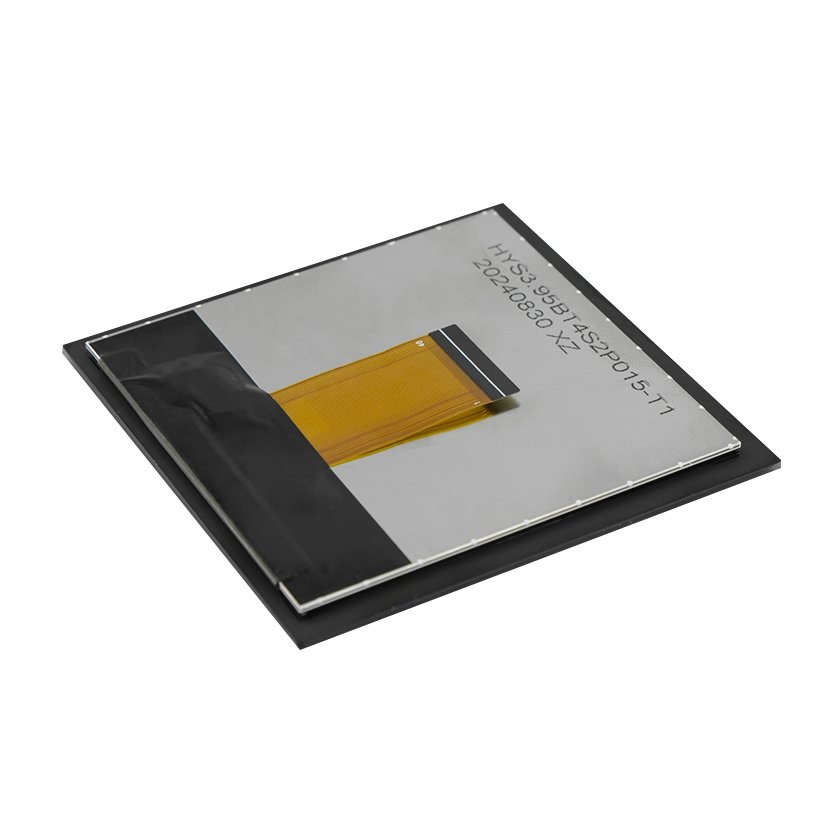

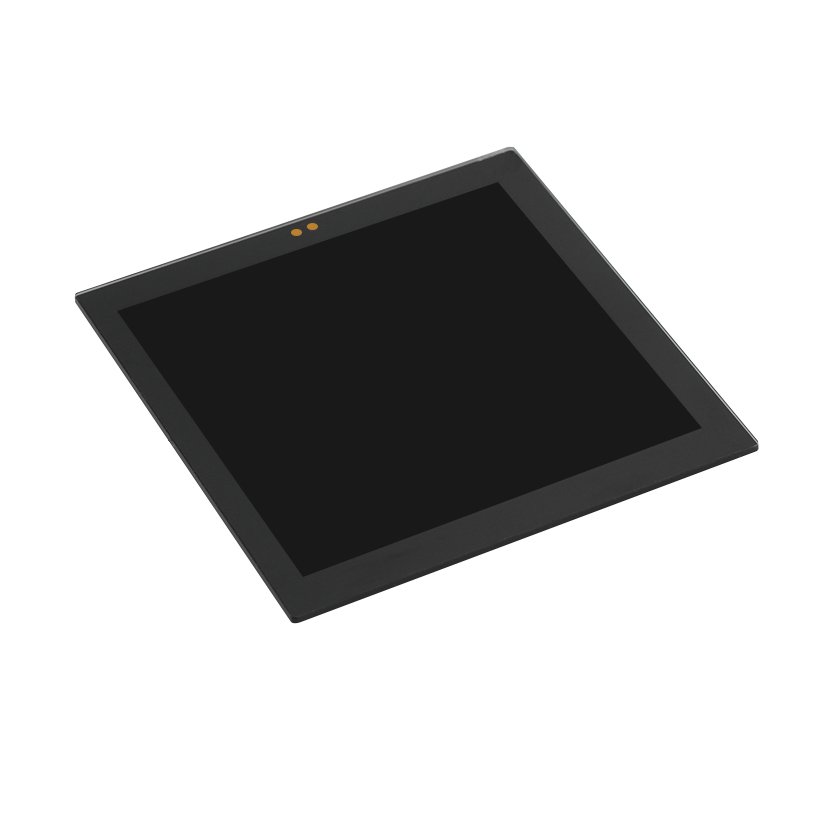

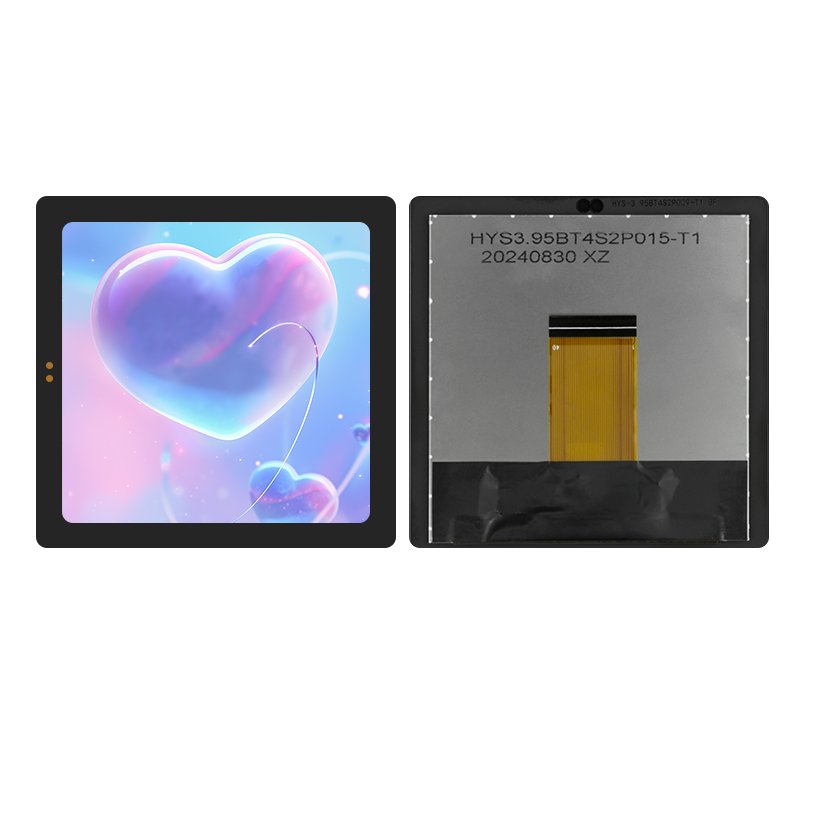

The 3.95-inch TFT LCD module is engineered to deliver high-quality visual performance with its 480×480 pixel resolution, ensuring crisp and vibrant displays. Its all-angle viewing feature guarantees uniform color and clarity from any direction, making it versatile for various applications. The integration of the ST7701 driver IC provides robust support for RGB and SPI interfaces, allowing for flexible connectivity options. Additionally, the inclusion of the NT8052C touch IC enhances the module with precise touch responsiveness, catering to interactive display requirements. This combination of features makes the display ideal for use in smart devices, control panels, and other interactive systems.

Item Contents Unit
LCD Type 3.95″ TFT –
Recommended Viewing Direction All O’Clock –

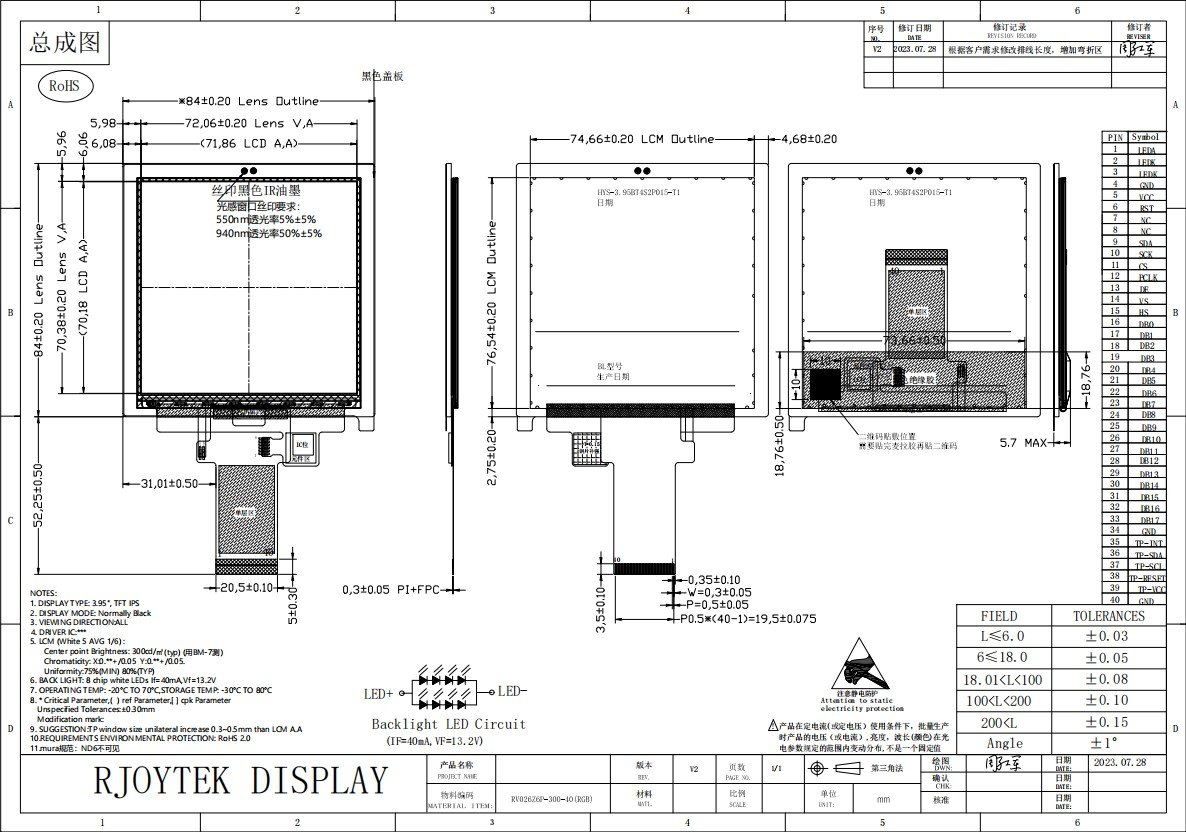

Module Dimensions (W×H×T) 74.66 × 76.54 × 2.09 mm
Module+CTP Dimensions (W×H×T) 84 × 84 × 3.97 mm
Active Area (W×H) 71.86 × 70.18 mm
Resolution 480(RGB) × 480 pixels
Pixel Pitch (W×H) 0.1462 × 0.1462 mm
Driver IC ST7701 –
Touch IC NT8052C –
Interface Type System RGB + SPI –
Colors 16.7M –
Backlight Type LED –



Additional information

Size(inch)

4.0
