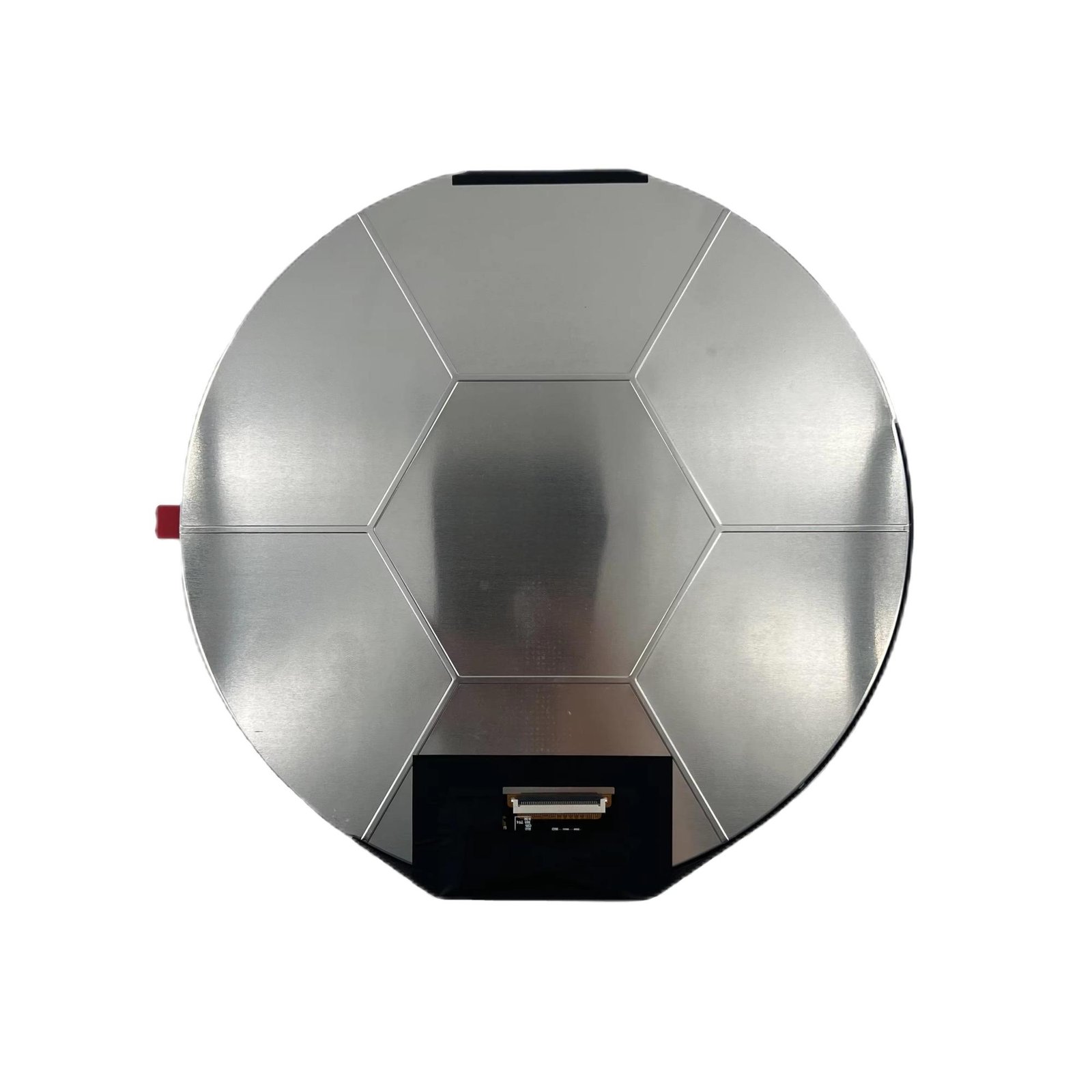

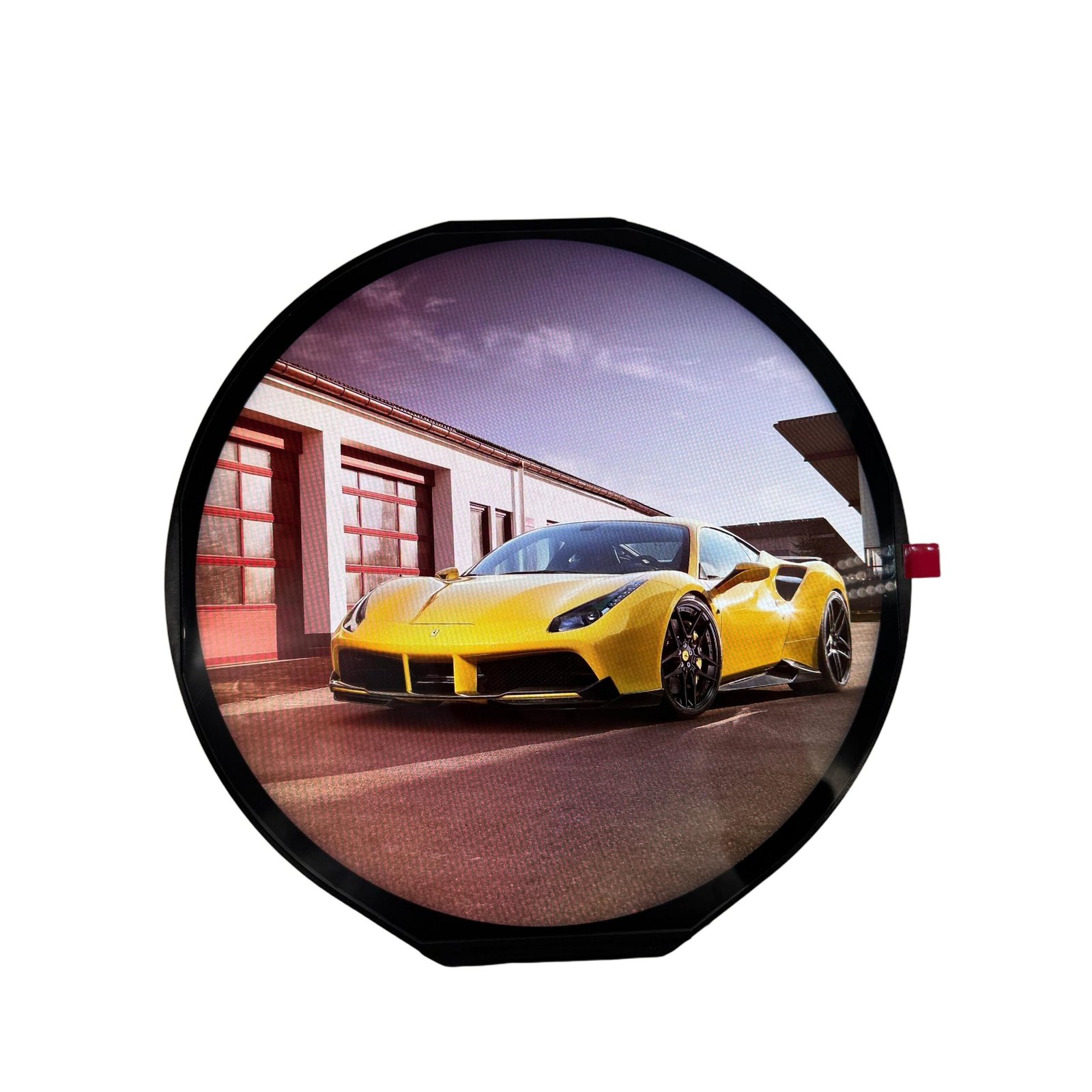

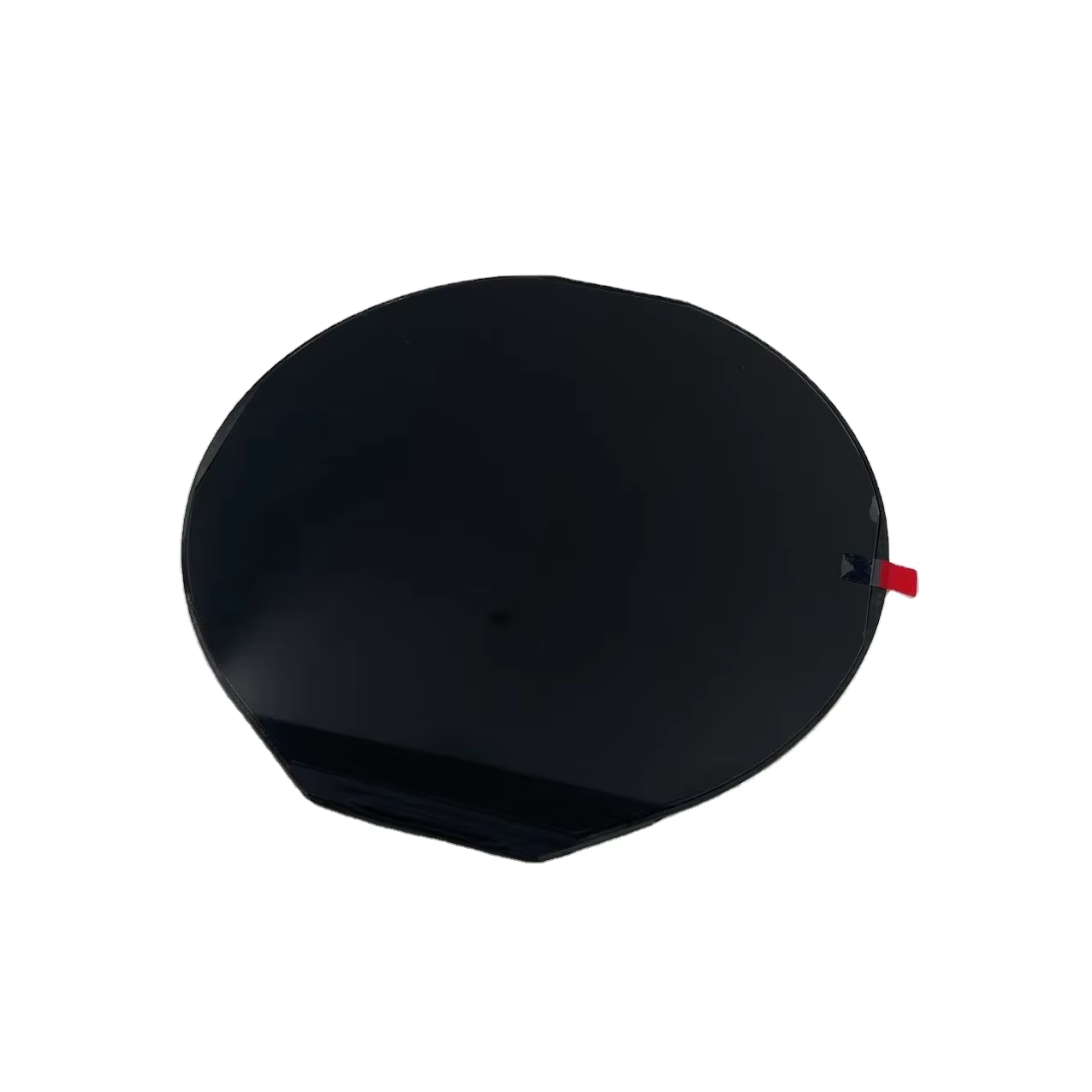

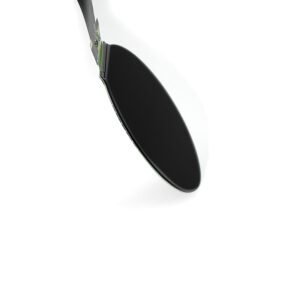

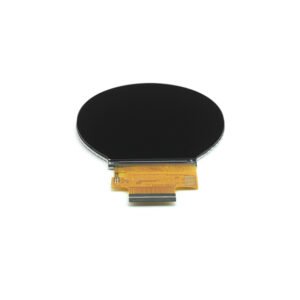

7-Inch Round TFT LCD Display, 1080×1080 Resolution, High-Brightness, LVDS Interface

7-Inch Round TFT LCD Display, 1080×1080 Resolution, High-Brightness, LVDS Interface - Image 2

7-Inch Round TFT LCD Display, 1080×1080 Resolution, High-Brightness, LVDS Interface

LCD Size: 7.0 inches
Resolution: 1080 x 1080 pixels
Luminance: 800 cd/m²
Interface Type: LVDS

SKU: RJY070XUAY-800-40 Category: Round Display Tag: New Display

Description
Additional information

Description

This 7-inch IPS LCD display is engineered to deliver superior image quality and wide-angle performance for high-end applications. With a square 1080×1080 resolution, vibrant 800 cd/m² brightness, and a wide viewing angle from all directions, it offers crystal-clear visuals in any environment. The LVDS interface ensures high-speed and reliable transmission, making it suitable for industrial controls, smart interfaces, and advanced consumer devices.

Item	Specification	Unit	Remark
LCD Size	7.0	inch	—
Panel Type	IPS	—	Wide viewing angle
Resolution	1080 (RGB) × 1080	pixels	1:1 square display
Display Mode	Normally Black	—	High contrast
Colors	16.7M	—	8-bit color depth
Viewing Direction	ALL directions	—	Full view
Color Saturation (NTSC)	70% (Typ.)	—	Rich color range
Contrast Ratio	1200 (Typ.)	—	Deep blacks
Brightness	800 (Typ.)	cd/m²	Sunlight readable

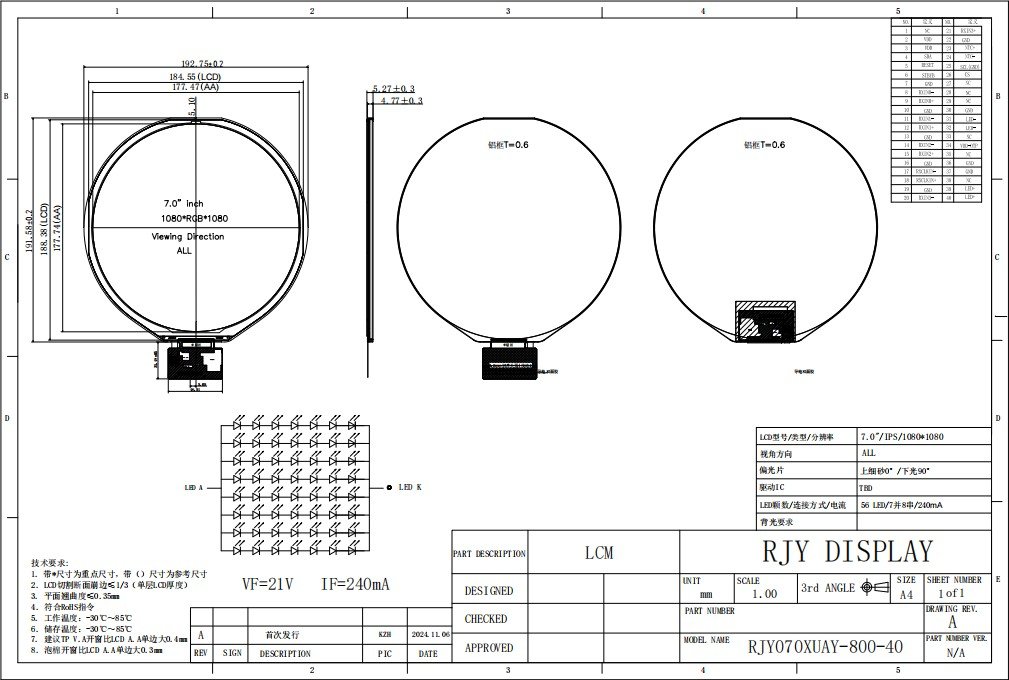

Module Size	191.58(H) × 192.75(V) × 5.27(D)	mm	—
Active Area	177.47(H) × 177.47(V)	mm	—
Pixel Pitch	0.1644 × 0.1644	mm	Fine pixel density
Pixel Arrangement	RGB Stripe	—	Standard layout
Driver IC	TBD	—	To be determined
Backlight Source	56 LEDs	—	High brightness backlight
Interface	LVDS	—	High-speed signal
Operating Temperature	–20 ~ +70	°C	Industrial-grade
Storage Temperature	–30 ~ +80	°C	—

Key Features

7-Inch IPS Panel
A true square format display with full viewing angles and brilliant color fidelity, ideal for modern UI design.
High Definition Resolution: 1080×1080
Offers sharp image detail and smooth graphics rendering for applications requiring precision visuals.
Excellent Sunlight Readability
With a brightness of 800 cd/m², it performs exceptionally well under direct or ambient light.
Wide Color Support
Supports 16.7 million colors with 70% NTSC color gamut, ensuring lifelike and vibrant output.
Industrial-Grade Operating Range
Functional from –20°C to +70°C with safe storage from –30°C to +80°C, built to withstand tough environments.
Flexible Integration with LVDS Interface
Reliable, high-speed signal transmission for embedded and custom systems.

Applications

Smart Home Control Panels
Industrial User Interfaces
Medical Display Devices
High-end Vending & Kiosks
Automotive Infotainment Systems

Application Scenarios

Industrial HMI Panels
Intuitive user interfaces for automation and machinery with high brightness and reliability.
Medical Equipment
Square format and IPS visibility ensure accurate readouts in demanding healthcare environments.
Smart Retail Devices
Elevates kiosk displays, vending interfaces, and retail systems with vibrant visuals and easy integration.
Home Automation & Control Systems
Perfectly fits smart home dashboards and wall-mounted control centers.
Automotive Infotainment
Its square design and wide temperature tolerance make it ideal for digital dashboards and in-car systems.

Why Choose This 7-Inch LCD Module?

Engineered for high-resolution, all-direction viewing
Designed for durability and adaptability in industrial settings
Compatible with a variety of embedded systems through LVDS
Custom driver IC support for flexible application development
Optimized for both outdoor and indoor environments

Would you like to receive the datasheet, 3D model (STEP file), or a sample quote for evaluation? Let us know how we can assist with your display integration.
