Universal LCD Display Control Board HDMI to MIPI Controller Board Kit
LCD DISPLAY CONTROL DRIVER BOARD
- Function: HDMI to MIPI
- Display Interface: MIPI-4LINE-LCD Panel, 40pin
- Max Resolution support: 1920*1200
- Main Chip: LT6911C
- Support Power: 9-28V 200MA(5.6W) LED backlight
Description
RJY-HDMI-MIPI-V1 LCD display control board supports MIPI-4LINE-LCD Panel with a resolution of 1920*1200 and below, and the main chip uses LT6911C. This LCD control board could buy together with our TFT LCD display panel, DHMI to MIPI LCD display and controller board kit.
It can support the conversion from the HDMI digital signal output by the PC to the MIPI signal that the LCD module can support. At the same time, it supports the LED screen backlight driver and can support the LED backlight within 9-28V 200MA (5.6W).

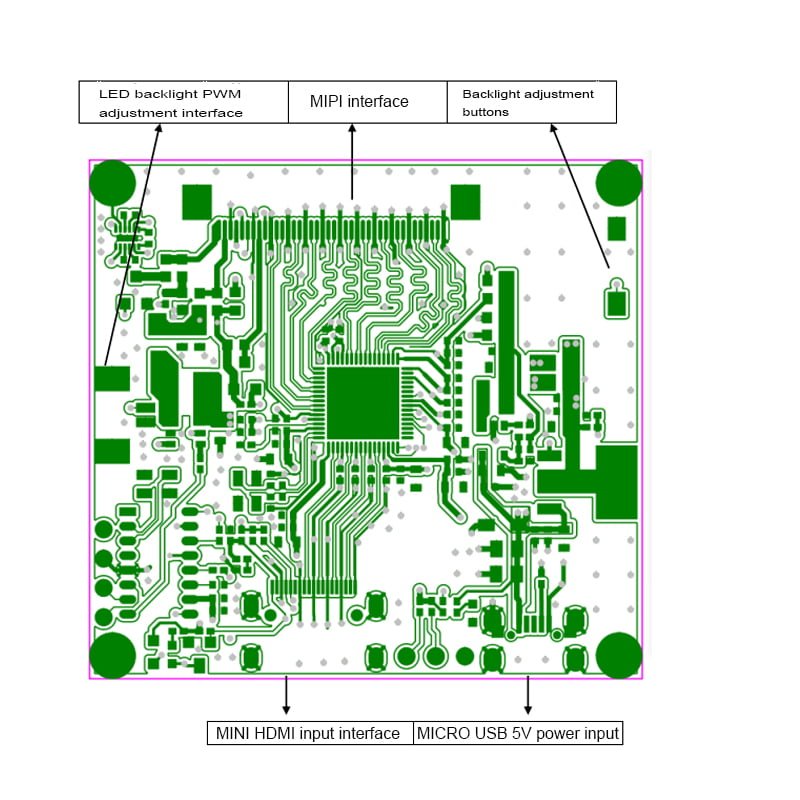

| Model | RJY-HDMI-MIPI-V1 | |
| main chip | LT6911C | |
| Interface | HDMI | HDMI |
| panel interface | FPC 0.5mm, 40pin connect | |
| PWM DEBUG | HX 1.25mm | |
| Power | Input power | MICRO-USB （+5V +/-0.5V） |
| Display voltage | 3.3V, can support multiple voltages of +5.5V/-5.5V at the same time | |
| Button | Optional, can customize display backlight brightness adjustment | |
| PCB size | 48*45*1.2 mm | |
